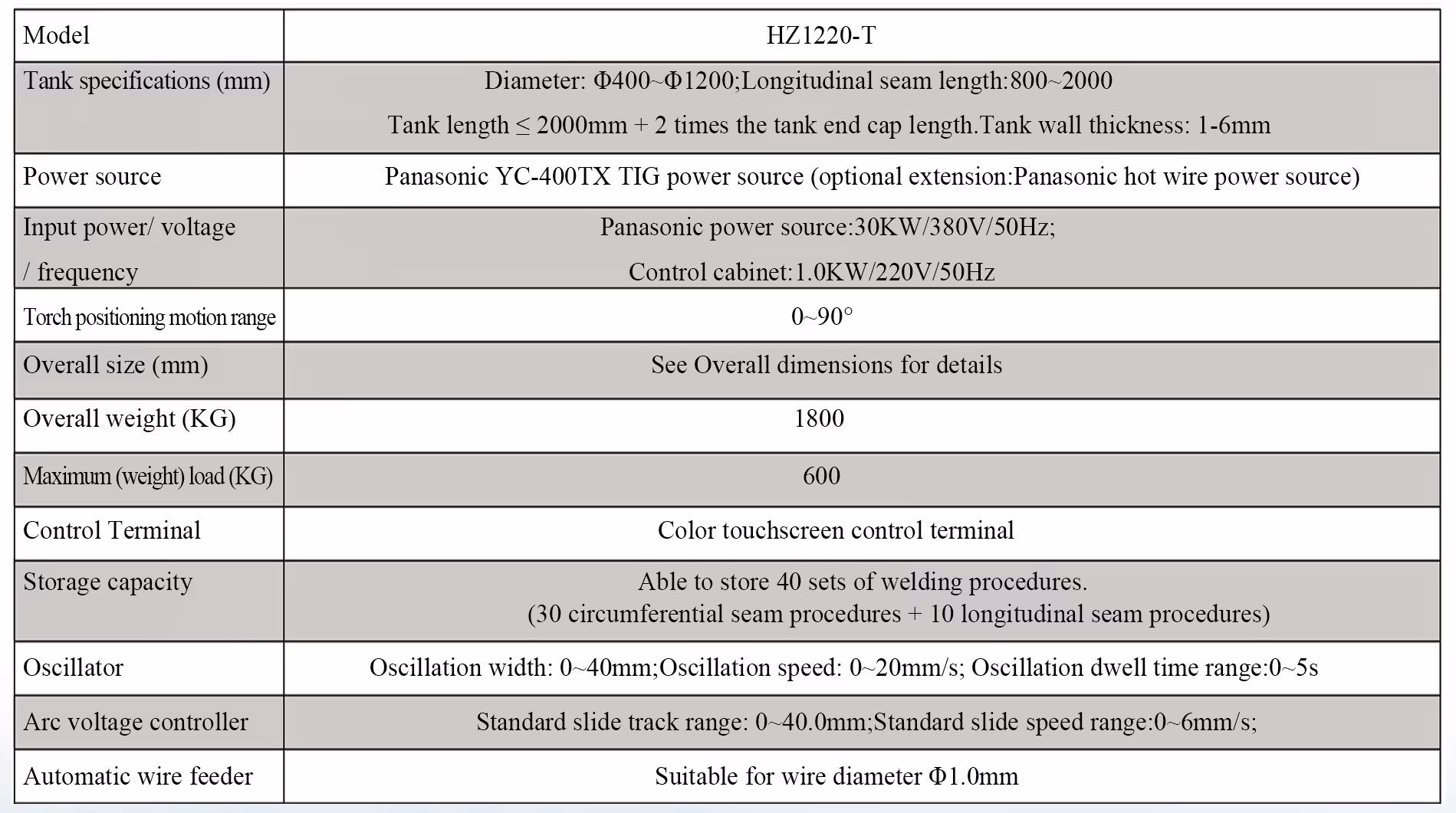

HZ1220-T Automatic Tank Welding Machine

Wide Application Range

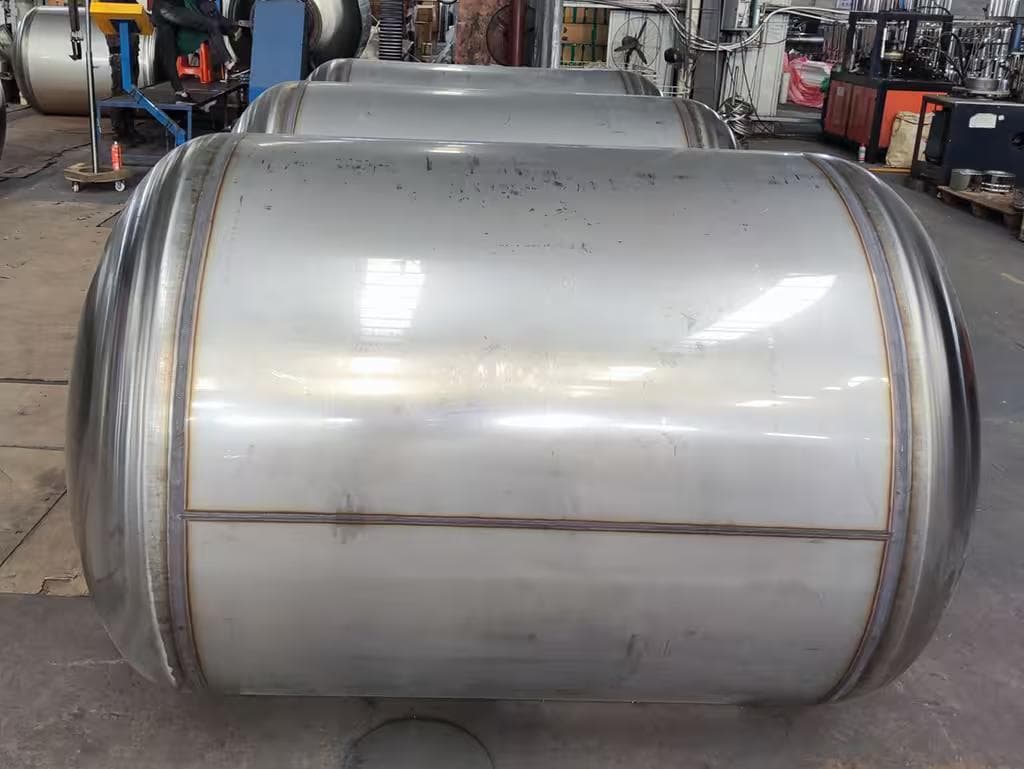

• Dual Seam Versatility: Simultaneously adaptable for welding tank end cap circumferential seams and barrel longitudinal seams.
• Material Compatibility: Delivers superior TIG weld quality across carbon steel, low-alloy steel, stainless steel, and copper.
• Medium-Scale Optimization: Specifically designed for tanks up to 2000 mm long with diameters ranging from Φ400 to Φ1200 mm.

Precision Engineering & Load Capacity

• Heavy-Duty Performance: Supports a maximum workpiece load of 600 kg, ensuring stability during high-precision rotation.
• Flexible Torch Positioning: Features a 0–90° torch positioning motion range to accommodate various joint geometries and angles.
• Sophisticated 3D Integration: Combines a three-dimensional manipulator arm with an angle adjustment mechanism for seamless transition between positions.

Intelligent Control & Automation

• Intuitive HMI Interface: Equipped with a large color touchscreen interface for simplified programming and real-time parameter intervention.
• One-Touch Automated Workflow: Achieves full-cycle automation with a single-button start, maximizing production consistency.
• Smart Recipe Management: Internal memory stores 40 sets of procedures, divided into 30 circumferential and 10 longitudinal seam programs for rapid retrieval.

Advanced Process Control

• Standard AVC & OSC Systems: Comes standard with Arc Voltage Control (AVC) for consistent arc length and an oscillation system (OSC) for precise bead control.
• Precision CNC Wire Feeding: High-accuracy feeder includes automatic back-draw and pulse feeding functions for Φ1.0 mm diameter wire.
• Integrated Thermal Management: Features a built-in forced-circulation water cooling unit to guarantee reliable operation during extended duty cycles.
