Y3660-T Automatic Welding Machine

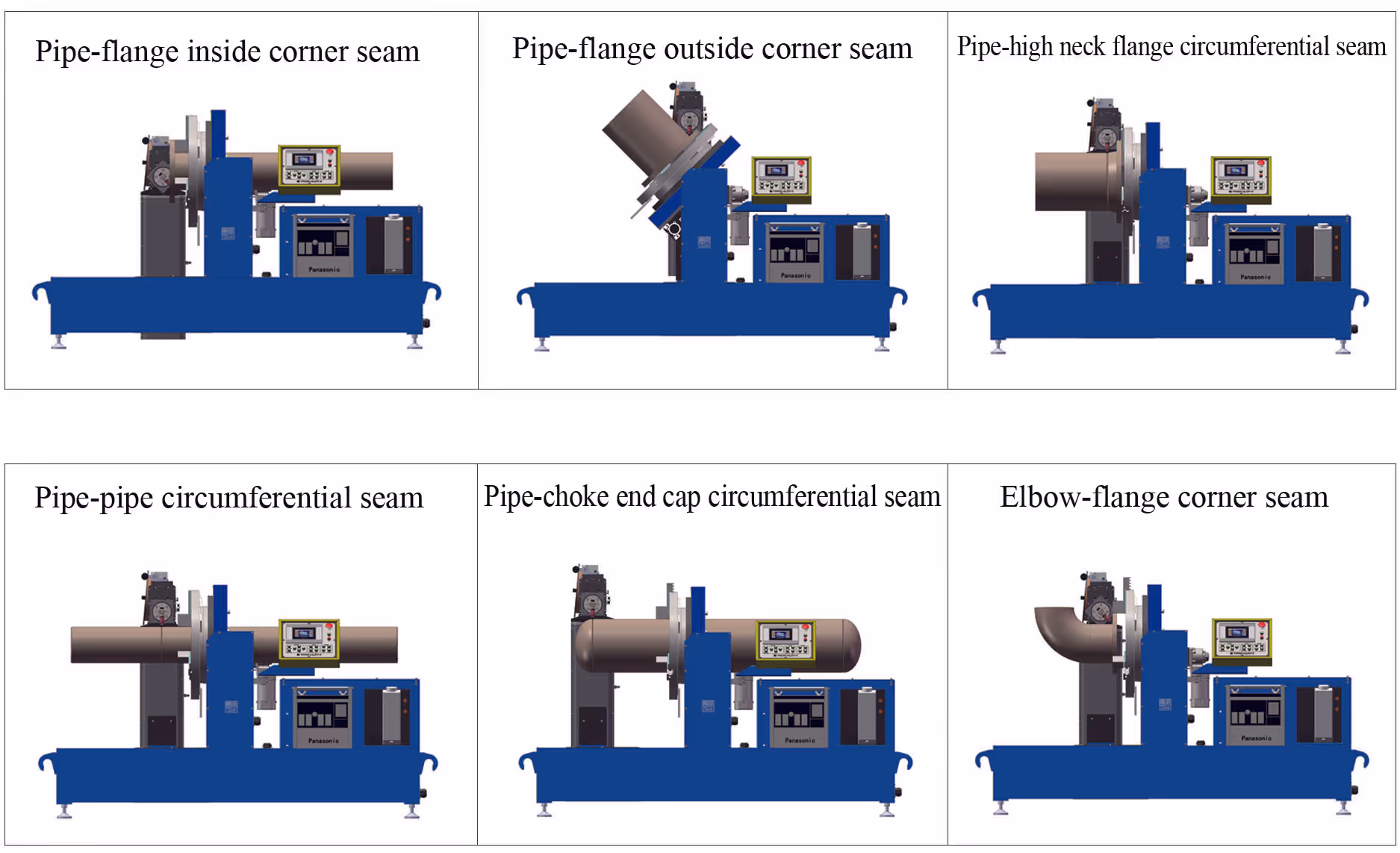

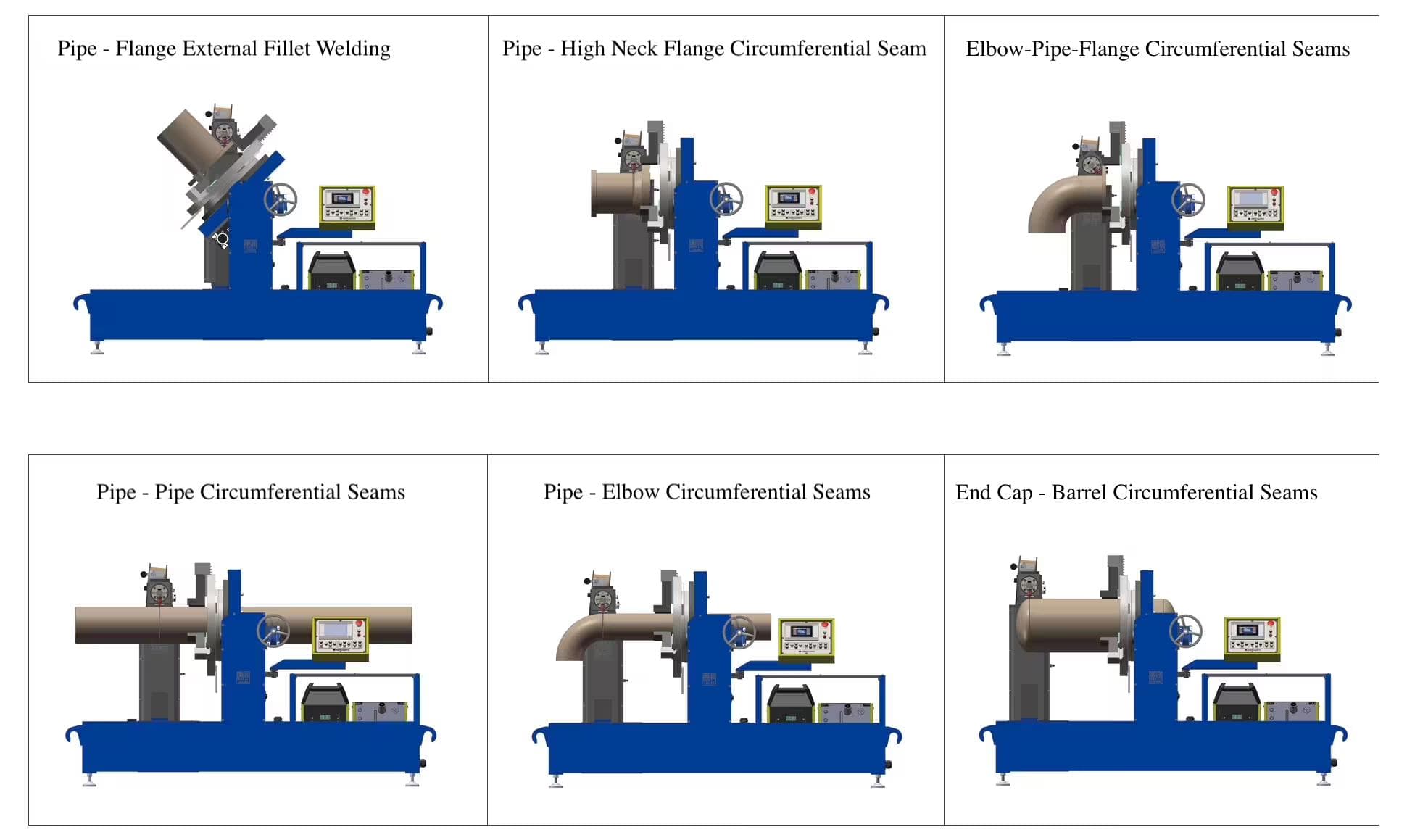

Wide Application Range

• Butt Welding: Pipe-to-pipe, elbow, tee, and weld neck flanges.

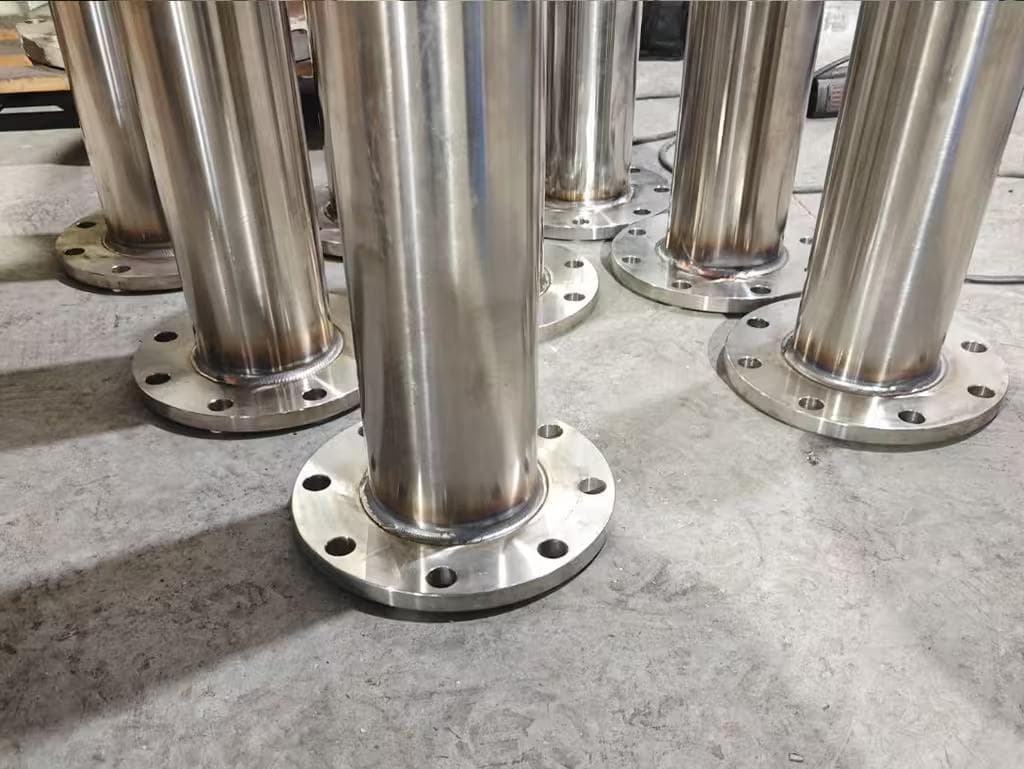

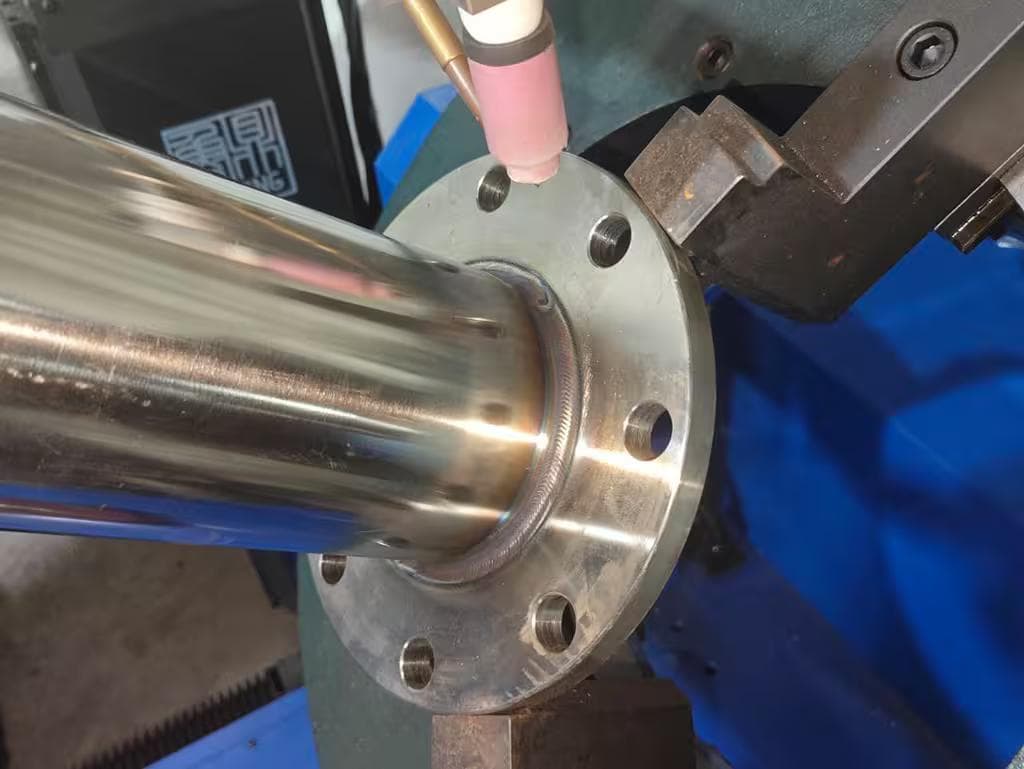

• Fillet Welding: Pipe-to-flange and elbow-to-flange joints.
• Versatile Material Support: Broad Material Compatibility: Supports welding of carbon steel, low alloy steel, stainless steel, copper, and other various alloys.

System Integration & Mobility

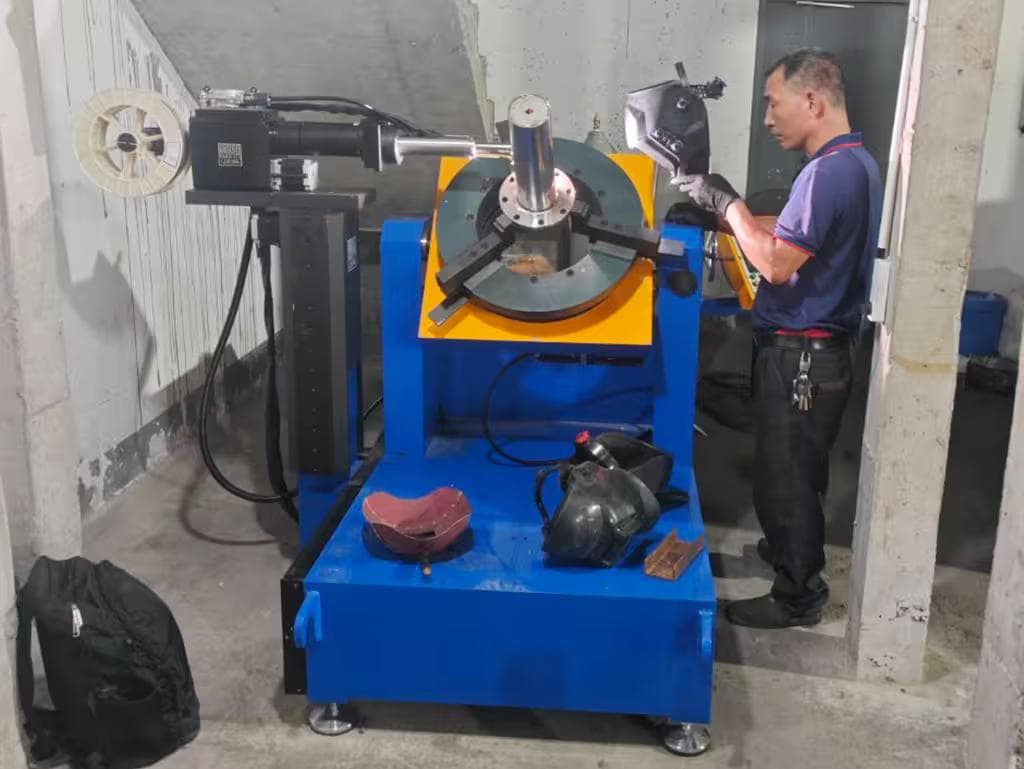

• Integrated Mobile Design: The main unit, control system, and power source are all integrated onto a single, heavy-duty base for maximum portability and effortless on-site operation.
• High-Efficiency Liquid Cooling: Features a forced-circulation water cooling system to ensure reliable, continuous operation during high-intensity duty cycles.

Mechanical Flexibility & Positioning

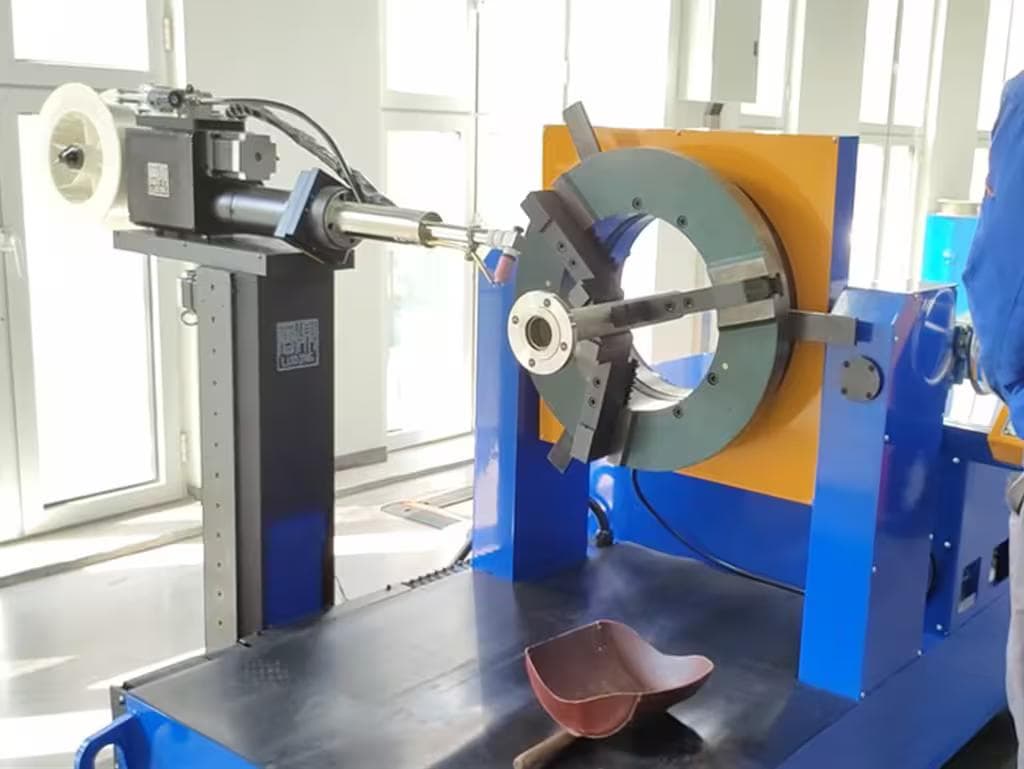

• Versatile Multi-Axis Positioning: The combination of a welding manipulator, an all-angle positioner, and a torch adjustment mechanism enables precise, multi-angle, and multi-position torch orientation.
• Integrated TIG (GTAW) System: Fully equipped with high-performance TIG welding equipment for superior weld quality.

Intelligent Control & Automation

• Intuitive HMI Interface: Equipped with a large-screen touchscreen interface for user-friendly navigation and simplified programming.
• One-Touch Automated Welding: Achieve full-cycle automation with one-button operation, while retaining the flexibility to make real-time parameter adjustments as needed.
• Smart Recipe Management: Internal memory stores up to 30 customized welding procedures, allowing for instant recall based on workpiece specifications or part numbers.

Advanced Process Control

• Standard AVC & OSC Systems: Comes standard with Arc Voltage Control (AVC) for consistent arc length and an oscillation system (OSC) for precise bead control.
• Precision CNC Wire Feeding: The high-accuracy CNC feeder supports both automatic wire retraction (back-draw) and pulse feeding functions for superior stability.
