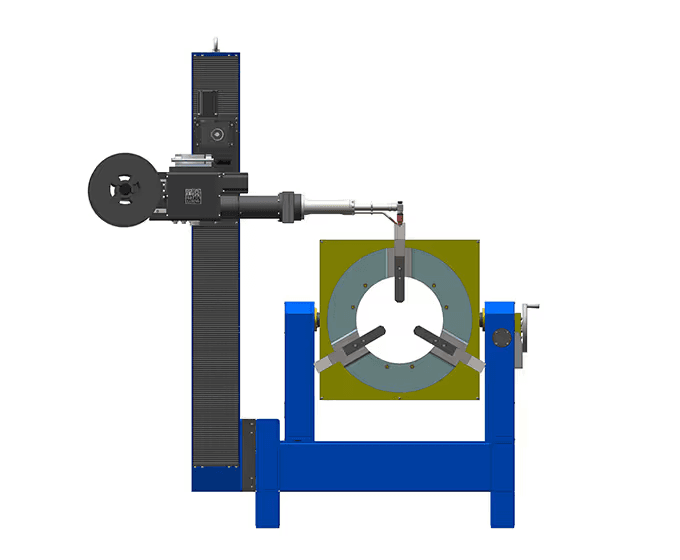

H3660-T Automatic Welding Machine

Wide Application Range

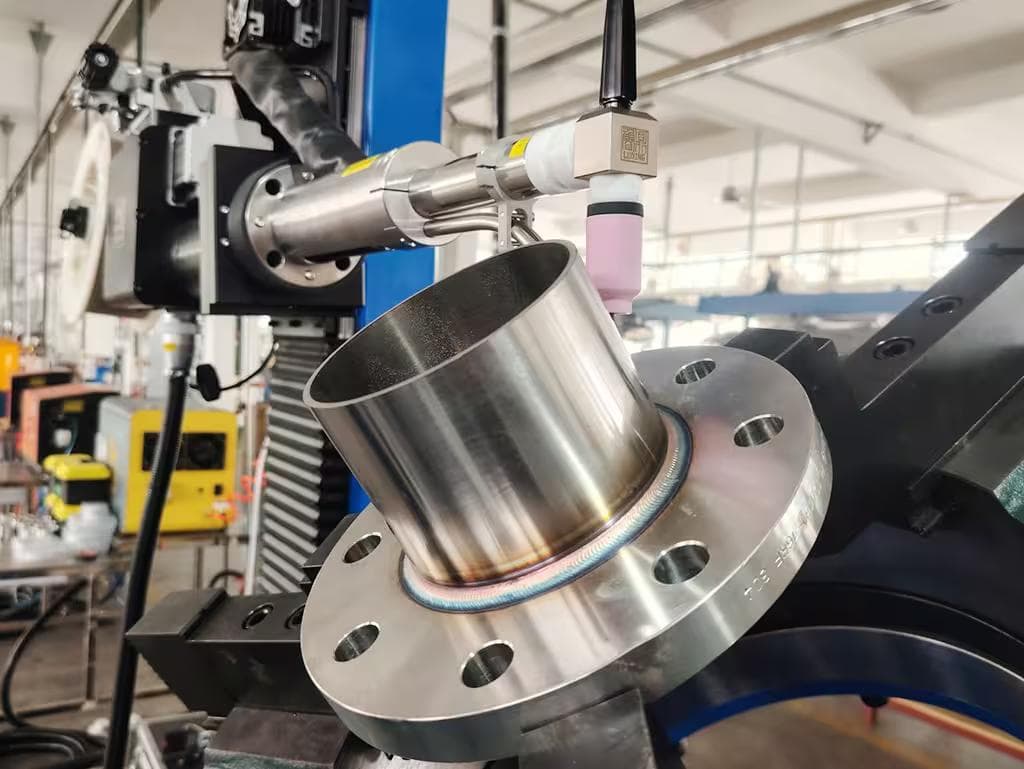

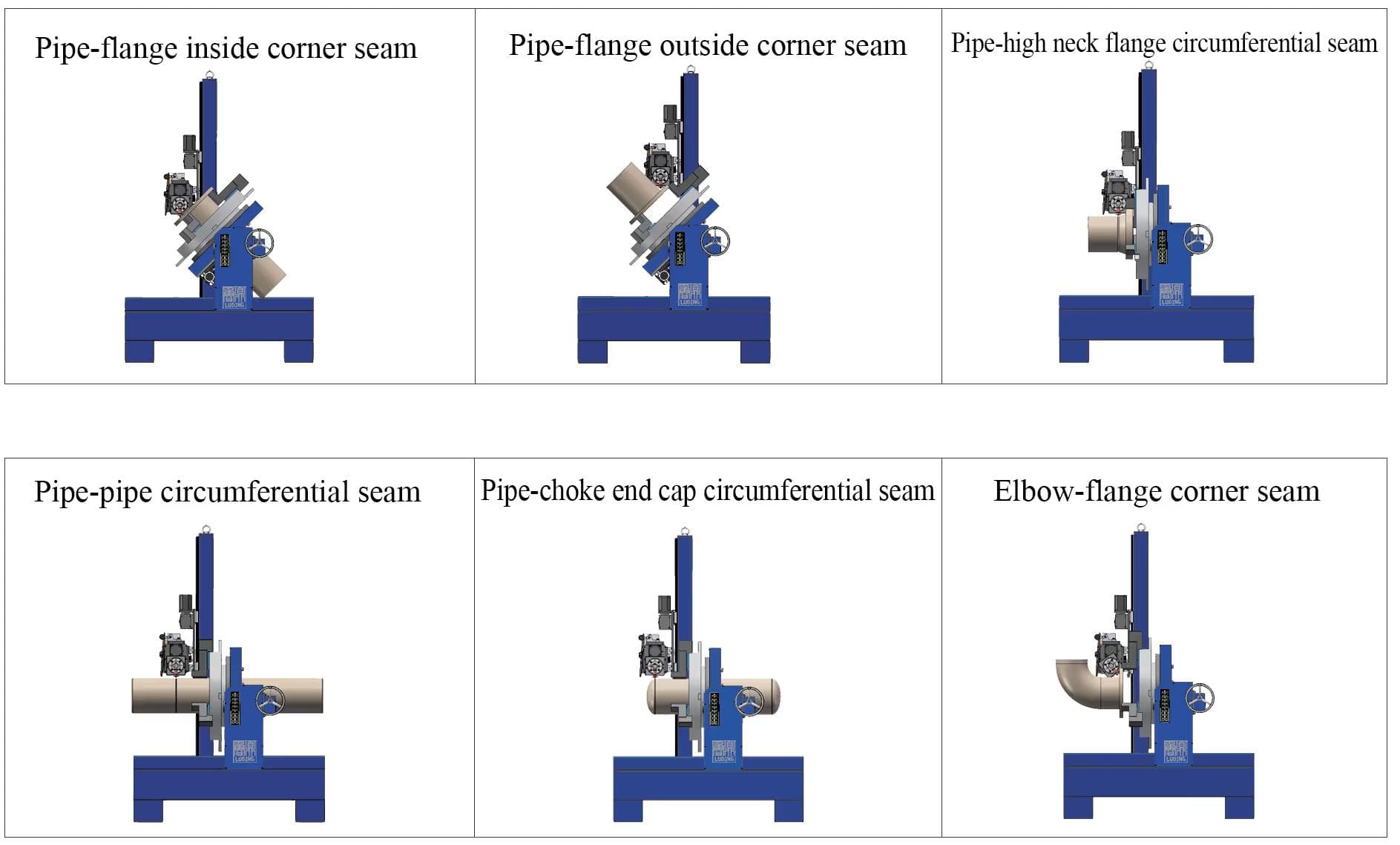

• Butt Welding: Specifically designed for pipe-to-pipe, pipe-to-elbow, pipe-to-tee (3-way), and high-neck flange butt-joints.

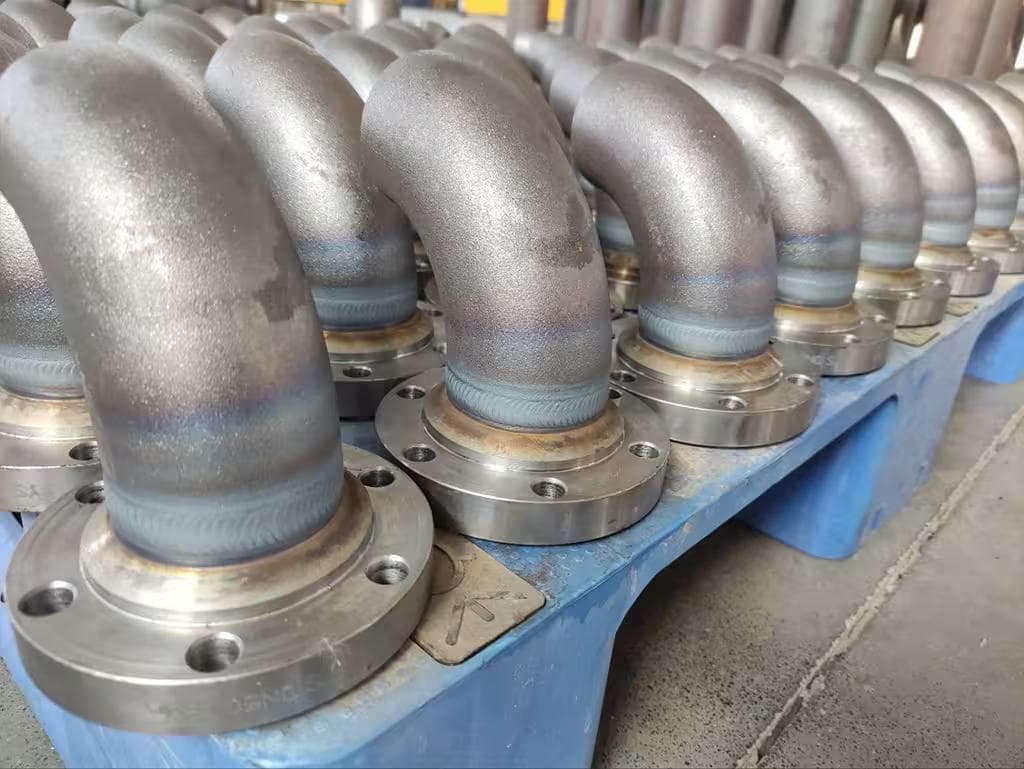

• Fillet Welding: Optimized for pipe-to-flange and elbow-to-flange corner joints.
• LNG Industry Specialist: Ideal for welding LNG accessories such as buffer tanks, vaporizers, and related components.
• Broad Material Compatibility: Supports high-standard TIG welding for carbon steel, low-alloy steel, stainless steel, and copper.

Heavy-Duty Mechanical Positioning

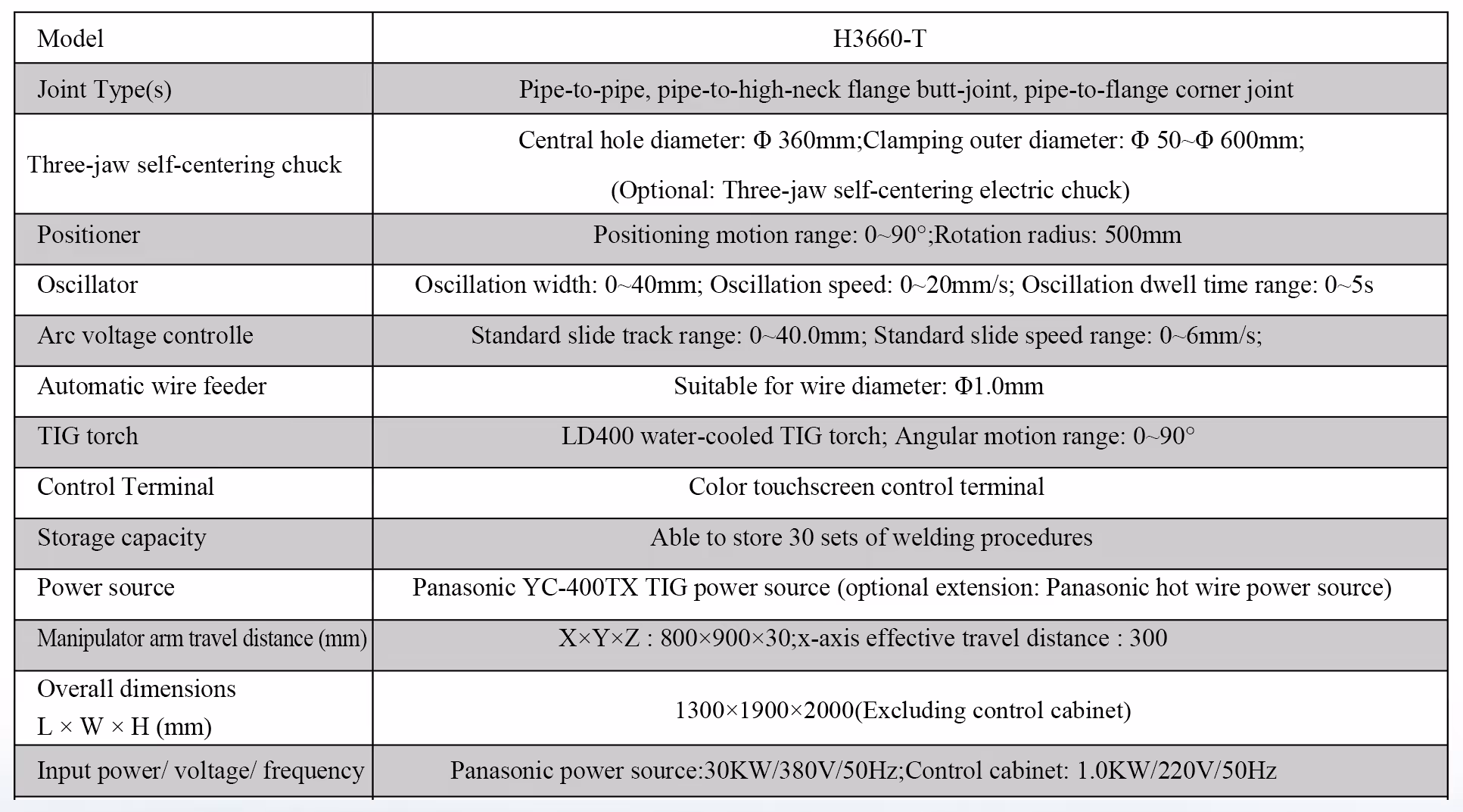

• 360mm Spindle Bore: Features a 3-jaw self-centering chuck with a 360 mm central hole, supporting an O.D. clamping range of 50–600 mm.
• Precision 3D Manipulator: Equipped with a three-dimensional welding manipulator arm offering an 800*900*30 mm travel distance.
• Motorized Tilting Positioner: Provides a 0–90° motion range and 500 mm rotation radius for seamless multi-angle positioning.
• Adjustable Torch Orientation: The LD400 water-cooled TIG torch features a 0–90° pivot range for complex joint accessibility.

Intelligent Control & Automation

• Intuitive Touchscreen HMI: Features a large-screen color interface for user-friendly navigation and simplified programming.
• Smart Recipe Management: Internal memory stores up to 30 sets of welding procedures (WPS) for instant job retrieval.
• One-Touch Automated Workflow: Achieves full-cycle automation with a single-button start, while allowing for real-time parameter intervention.

Advanced Process Control

• Standard AVC & OSC Systems: Equipped with Arc Voltage Control (AVC) for consistent arc length and an oscillation system (OSC) for meticulous bead control.
• Precision CNC Wire Feeding: High-accuracy feeder includes automatic back-draw and pulse feeding functions for superior stability.
• Integrated Thermal Management: Built-in forced-circulation water cooling guarantees reliable operation during high-intensity duty cycles.
