H1440-Series Automatic Welding Machine

Versatile Welding Capabilities

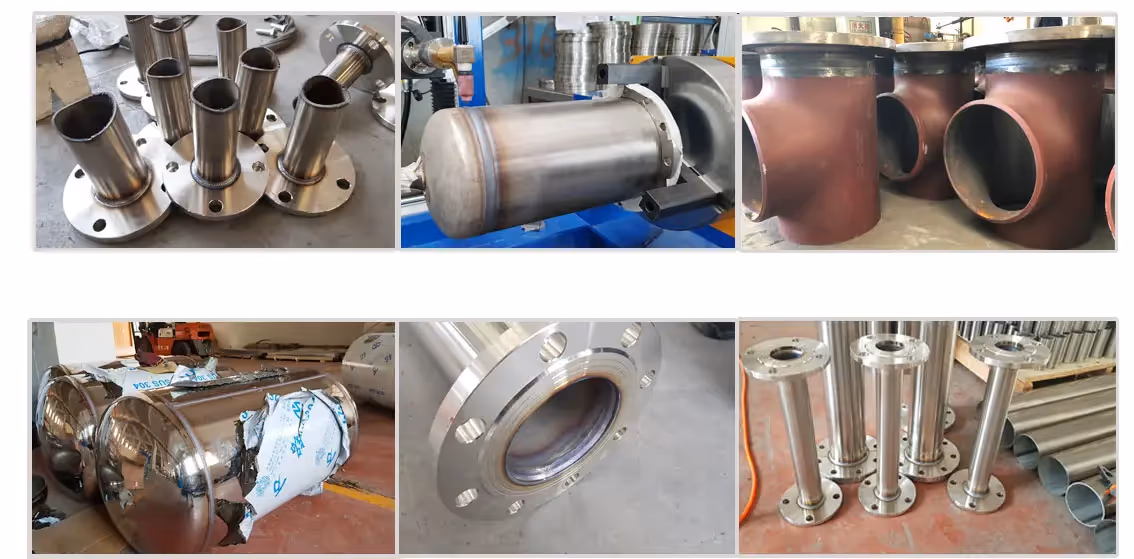

  • Suitable for welding pipe-to-pipe, pipe-to-elbow, pipe-to-3-way pipe, and pipe-to-high neck flange butt-joint; pipe-to-flange and elbow-to-flange corner joint.
  • Suitable for welding various materials such as carbon steel, low alloy steel, stainless steel, and copper.

Advanced Welding Equipment

  • Equipped with TIG welder, arc voltage controller (AVC) and oscillator (OSC).
  • The automatic wire feeder is equipped with automatic wire retraction and impulse wire feeding functions, ensuring precise and accurate wire feeding.

Precision and Reliable Engineering

  • Integrated design with compact and reliable structure; three-jaw self-centering chuck offers precise rotation and positioning.
  • The machine comprises a comprehensive integration of a three-dimensional welding manipulator arm, a positioner, and a welding torch angle adjustment mechanism. This sophisticated combination ensures a seamless transition of various positions and angles for the torch, enabling precise and efficient welding operation.
  • A forced circulation water cooling unit is built into the machine, guaranteeing reliable and uninterrupted operation for extended periods.

User-Friendly Interface

  • The operation system of the machine features a user-friendly touchscreen interface, facilitating effortless programming.
  • The machine features a one-touch operation that automates the entire welding process. It also allows real-time intervention for adjusting welding parameters as needed.
  • With a storage capacity for 30 sets of welding procedures, the system enables direct retrieval of the corresponding elding procedures based on specific weldment specifications.
