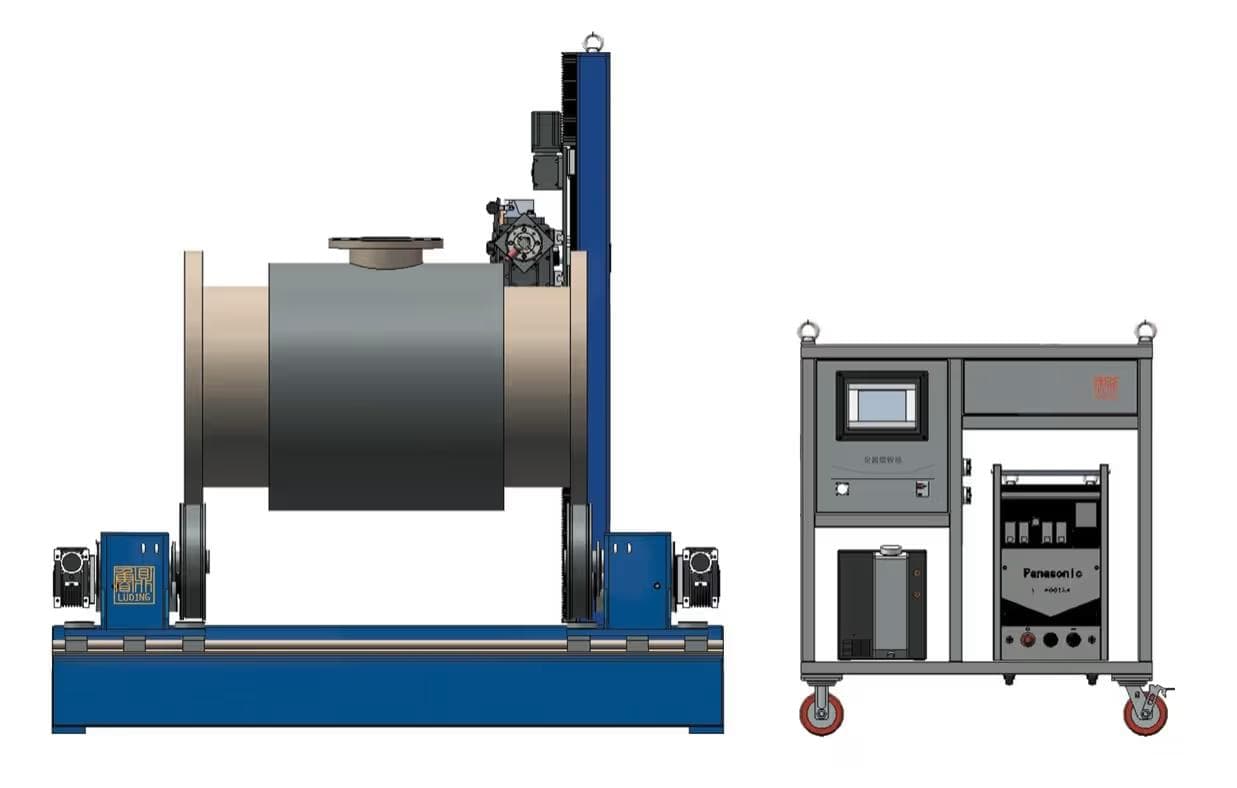

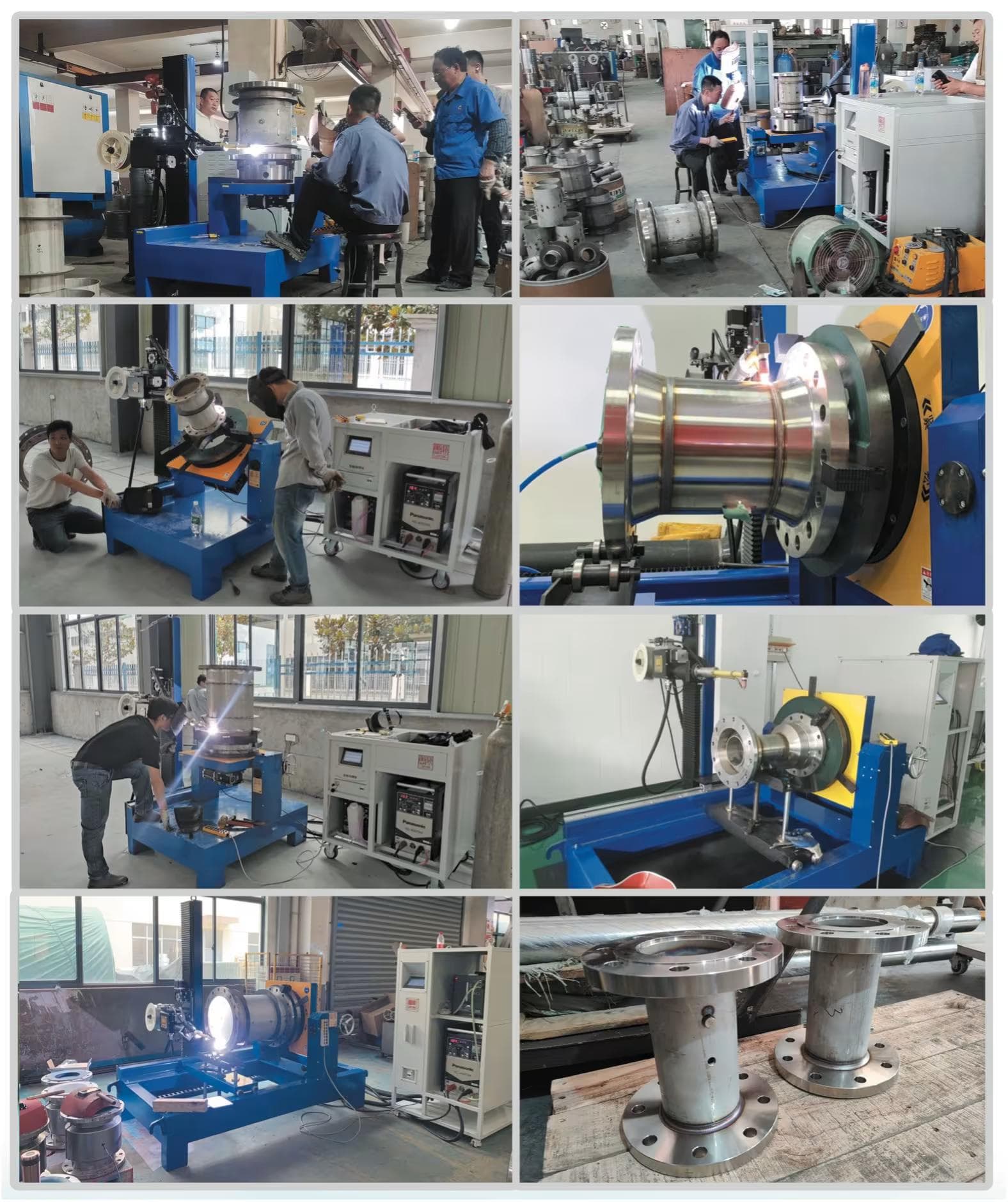

SPF600-T Double-Ended Flange Automatic Welding Machine
The SPF600-T is an automatic TIG welding machine for double-ended pipe flange circumferential fillet welds. With a unique grooved wheel design for fast loading, arc tracking, and touchscreen control, it delivers precise welds on carbon steel, alloy, and stainless steel pipes.
Speak with an engineer directly
Product Details
- Assembly Compatibility: Suitable for inner and outer circumferential fillet seam welding of double-ended pipe flanges.
- Material Versatility: Suitable for welding a variety of materials including carbon steel, low-alloy steel, and stainless steel.
- Welding Equipment Integration: Equipped with Gas Tungsten Arc Welding (GTAW/TIG) equipment.
- Innovative Workholding: Features an integrated machine design with a compact structure; utilizes a unique grooved wheel design ensuring accurate rotational positioning and fast, efficient workpiece loading/unloading.
- Intuitive HMI Control: The control system utilizes a large touchscreen Human-Machine Interface (HMI), enabling convenient programming.
- WPS Process Memory: Welding procedure storage capacity is 30 sets; specific welding procedures (WPS) can be directly recalled by identification number according to workpiece specifications.
- Intelligent Arc Tracking & Weaving: Standard configuration includes an Arc Voltage Control system (AVC) and a welding torch cross-oscillation system (OSC).
- CNC Automated Wire Feeding: CNC automatic wire feeder equipped with automatic wire retraction and pulsed wire feeding functionalities, ensuring high wire feed precision.
- Forced Closed-Loop Cooling: Equipped with a forced circulation water-cooling system to ensure continuous, long-term, and reliable operation of the entire machine.
- Dual Operation Modes: One-touch operation autonomously completes the entire welding process; real-time manual intervention of welding parameters is also permitted according to requirements.
Technical Specifications
| Model | SPF600-T |
| Applicable Joint Types | Suitable for inner and outer circumferential fillet seam welding of double-ended pipe flanges. |
| Weldment O.D. Range | 150 – 600 mm |
| Welding Oscillator | Oscillation Width: 0 – 20 mm; Oscillation Speed: 0 – 20 mm/s; Groove Sidewall Dwell Time: 0 – 5 s |
| Arc Voltage Controller | Tracking Range: 0 – 40.0 mm; Tracking Speed: 0 – 6 mm/s; Arc length tracking precision: 0.2 mm |
| Auto Wire Feeder | Optimized for 1.0 mm wire diameter |
| TIG Torch | LD400 Water-Cooled TIG Torch Torch Pivot Range: 0–90° |
| Control Terminal | Color Touchscreen HMI (Human Machine Interface) |
| Procedure Memory Capacity | 30 Sets of Welding Procedures |
| Power Supply | Panasonic YC-400TX TIG Power Supply |
| Input Power/Voltage/Frequency | Welding Machine: 30 kW / 380 V / 50 Hz Control System: 0.5 kW / 220 V / 50 Hz |
| Weldment Pipe Length | ≤ 800 mm |
| Weldment Pipe Wall Thickness | ≥ 1 mm |
Model
SPF600-T
Applicable Joint Types
Suitable for inner and outer circumferential fillet seam welding of double-ended pipe flanges.
Weldment O.D. Range
150 – 600 mm
Welding Oscillator
Oscillation Width: 0 – 20 mm;
Oscillation Speed: 0 – 20 mm/s;
Groove Sidewall Dwell Time: 0 – 5 s
Arc Voltage Controller
Tracking Range: 0 – 40.0 mm;
Tracking Speed: 0 – 6 mm/s;
Arc length tracking precision: 0.2 mm
Auto Wire Feeder
Optimized for 1.0 mm wire diameter
TIG Torch
LD400 Water-Cooled TIG Torch
Torch Pivot Range: 0–90°
Control Terminal
Color Touchscreen HMI (Human Machine Interface)
Procedure Memory Capacity
30 Sets of Welding Procedures
Power Supply
Panasonic YC-400TX TIG Power Supply
Input Power/Voltage/Frequency
Welding Machine: 30 kW / 380 V / 50 Hz
Control System: 0.5 kW / 220 V / 50 Hz
Weldment Pipe Length
≤ 800 mm
Weldment Pipe Wall Thickness
≥ 1 mm
