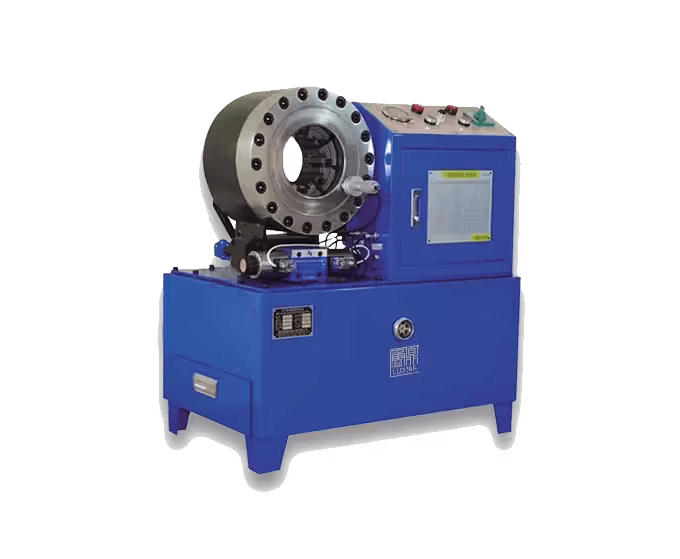

KY100 Corrugated Hose Crimping Machine
Support Equipment
Achieving a flawless weld on a corrugated metal hose begins with a perfectly tight assembly. The KY100 Hose Crimping Machine is expertly engineered to securely unite corrugated hoses, wire mesh braids, and compression collars into a single, cohesive unit.
By applying uniform, high-pressure crimping, this machine completely eliminates gaps between the components, ensuring the welding surfaces are flush and ready for automated TIG welding. With its adaptable mold system for different tube diameters, it is an indispensable tool for manufacturers seeking industrial-grade reliability and zero-defect production lines.
Speak with an engineer directly
Product Details
Product Details:
- Designed specifically for assembling corrugated hoses, wire mesh sleeves (braids), and compression collars.
- Requires a minimum compression collar thickness of ≥ 1 mm to ensure structural integrity during the crimping process.
- Equipped with fully interchangeable crimping molds to easily accommodate various tube diameters and production runs.
- Guarantees a tight, gap free fit of the welding surfaces, which is critical to preventing blow-through during TIG welding.
- Serves as a crucial pre-weld preparation step, enhancing the overall efficiency and success rate of automatic welding systems.
Technical Specifications
| Model | KY100 |
| Applicable Joint Types | Corrugated bellows, mesh sleeves (wire braids), and compression collars |
| Control Terminal | Color Touchscreen HMI (Human Machine Interface) |
| Power Supply | AC 380 V ±10%, 50/60 Hz, 0.6 kW (Three-phase five-wire) |
| Input Power/Voltage/Frequency | AC 380 V ±10%, 50/60 Hz, 0.6 kW (Three-phase five-wire) |
Model
KY100
Applicable Joint Types
Corrugated bellows, mesh sleeves (wire braids), and compression collars
Control Terminal
Color Touchscreen HMI (Human Machine Interface)
Power Supply
AC 380 V ±10%, 50/60 Hz, 0.6 kW (Three-phase five-wire)
Input Power/Voltage/Frequency
AC 380 V ±10%, 50/60 Hz, 0.6 kW (Three-phase five-wire)
Product Gallery

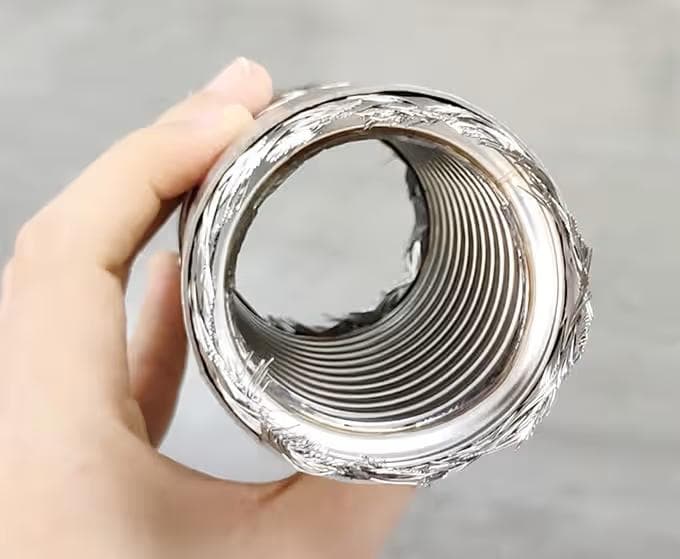

Hose after crimping

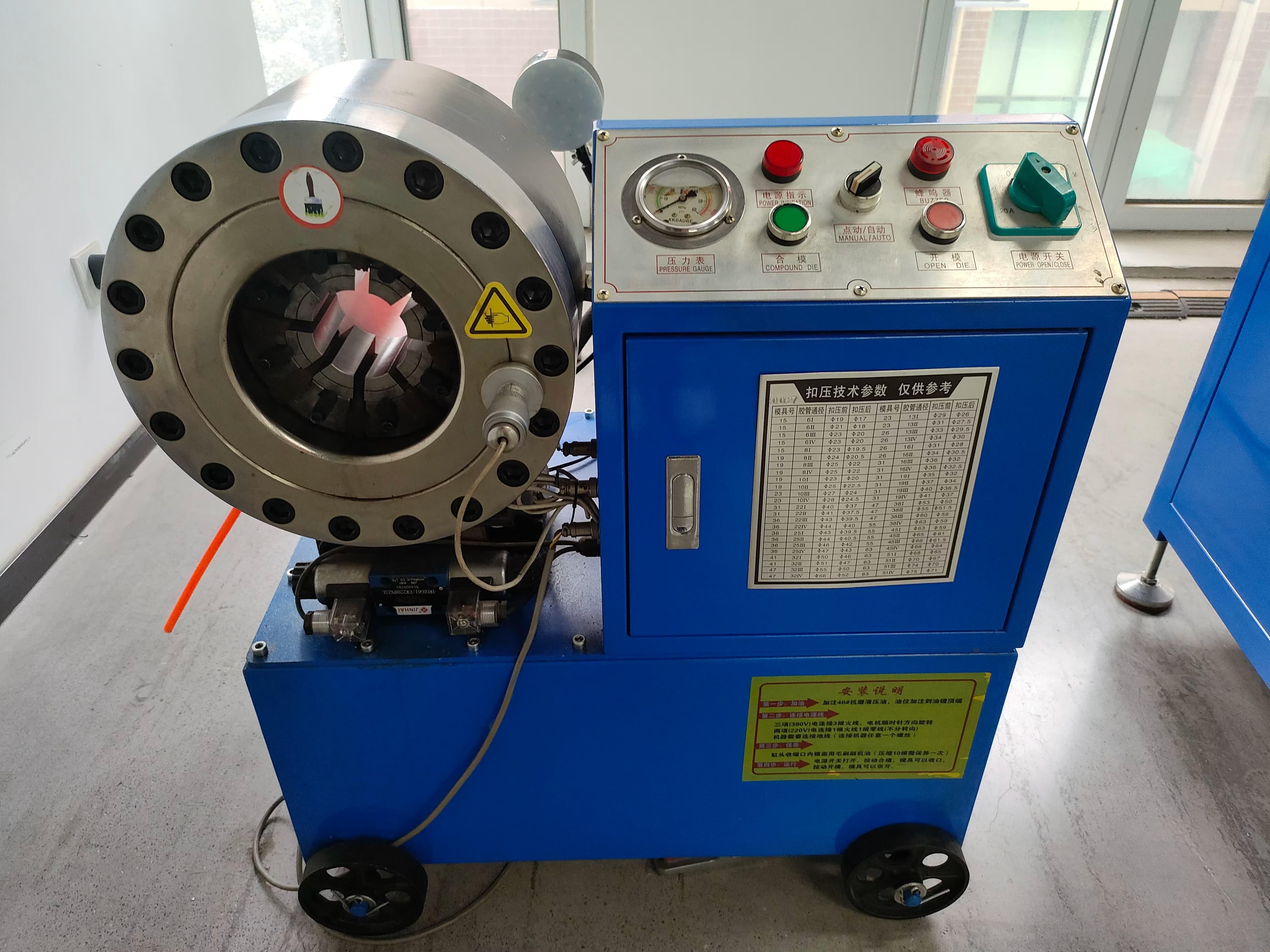

KY100 Hose Crimping Machine -- Front View

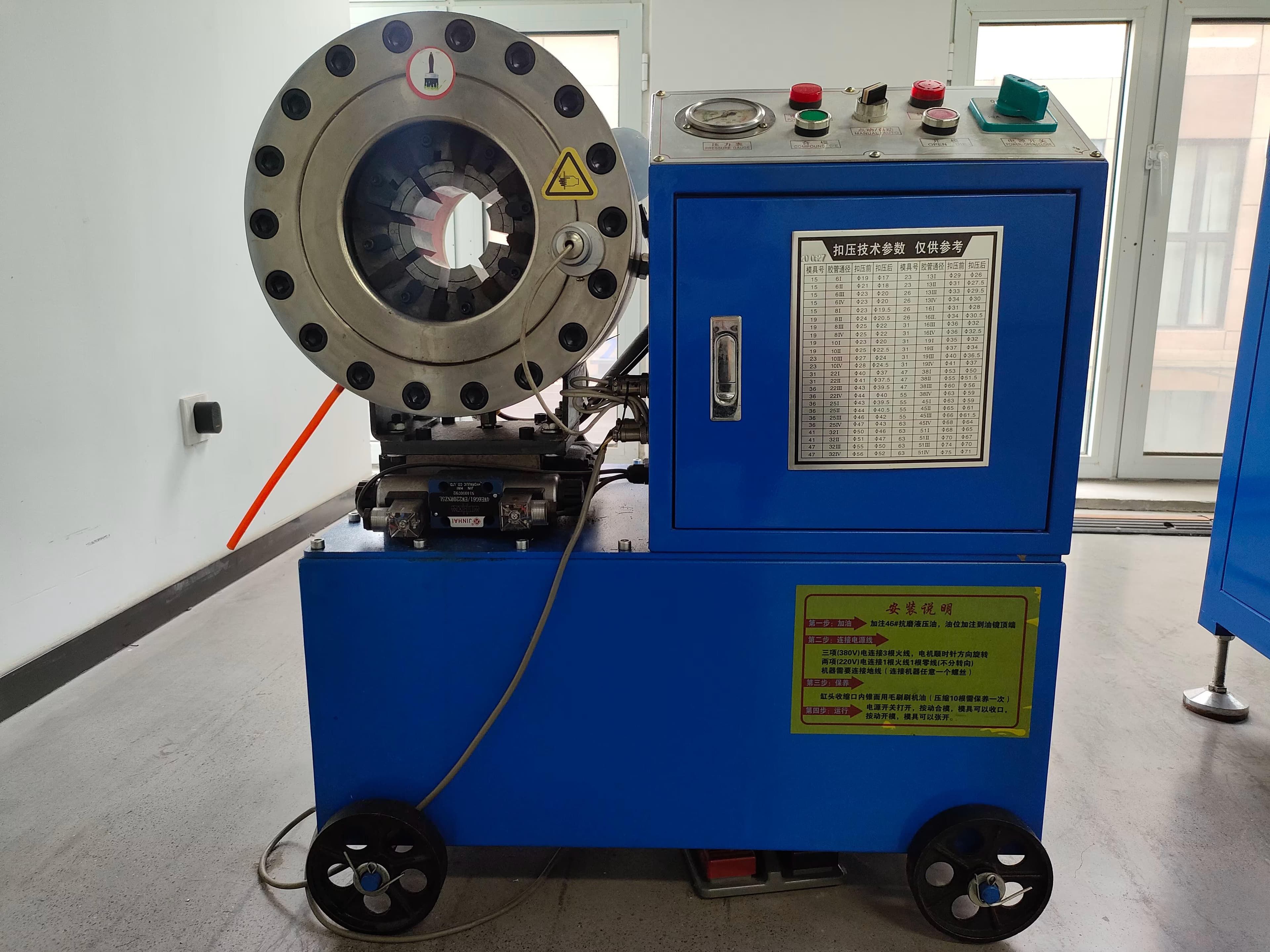

KY100 Hose Crimping Machine -- Front View #2
