HZK1220F-TD Automatic Tank Welding Machine

Specialized Clamping & Application Range

• Clamping Type Innovation: Utilizes a specialized compressing and clamping method for weldment fixation, significantly enhancing loading efficiency compared to standard models.

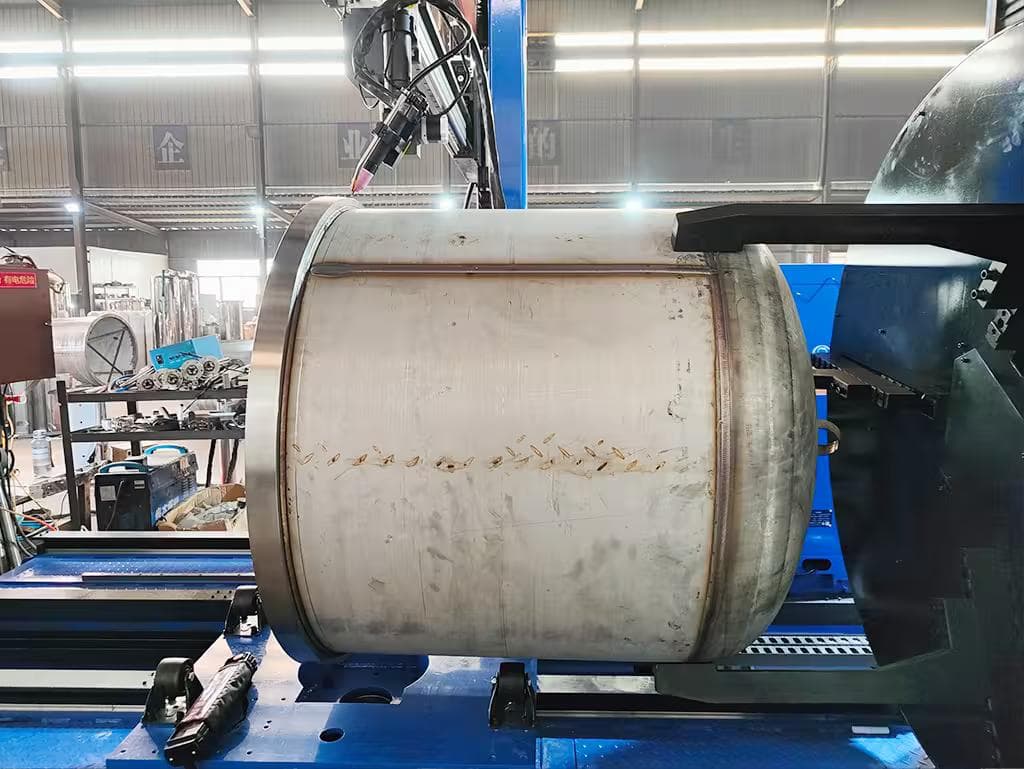

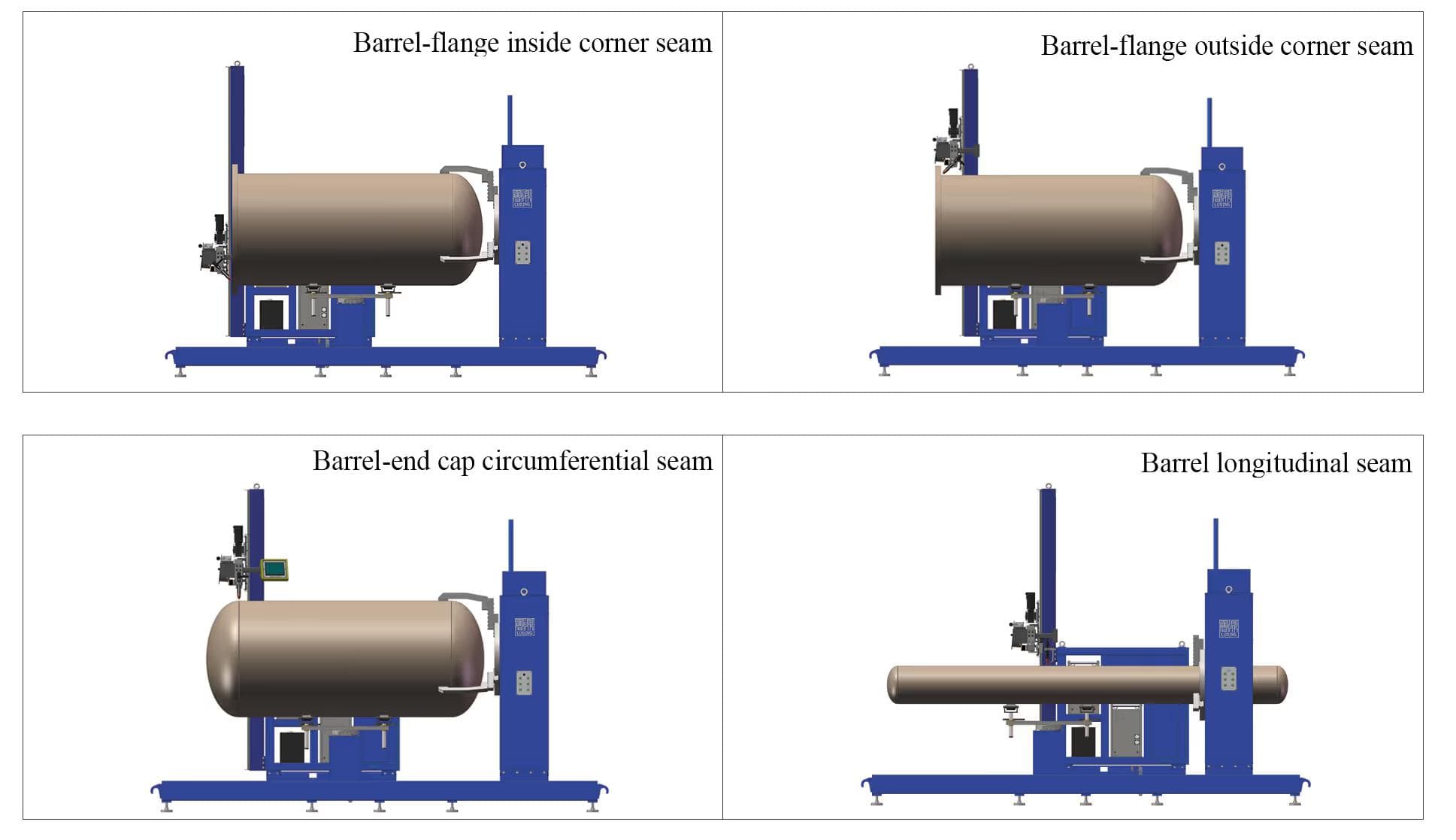

• Dual Seam Versatility: Simultaneously adaptable for high-precision welding of tank end cap circumferential seams and barrel longitudinal seams.
• Material Compatibility: Delivers superior TIG weld quality across carbon steel, low-alloy steel, stainless steel, and copper.
• Optimized Dimensions: Specifically designed for tanks up to 2000 mm long with diameters ranging from Φ400 to Φ1200 mm.

Heavy-Duty Engineering & Positioning

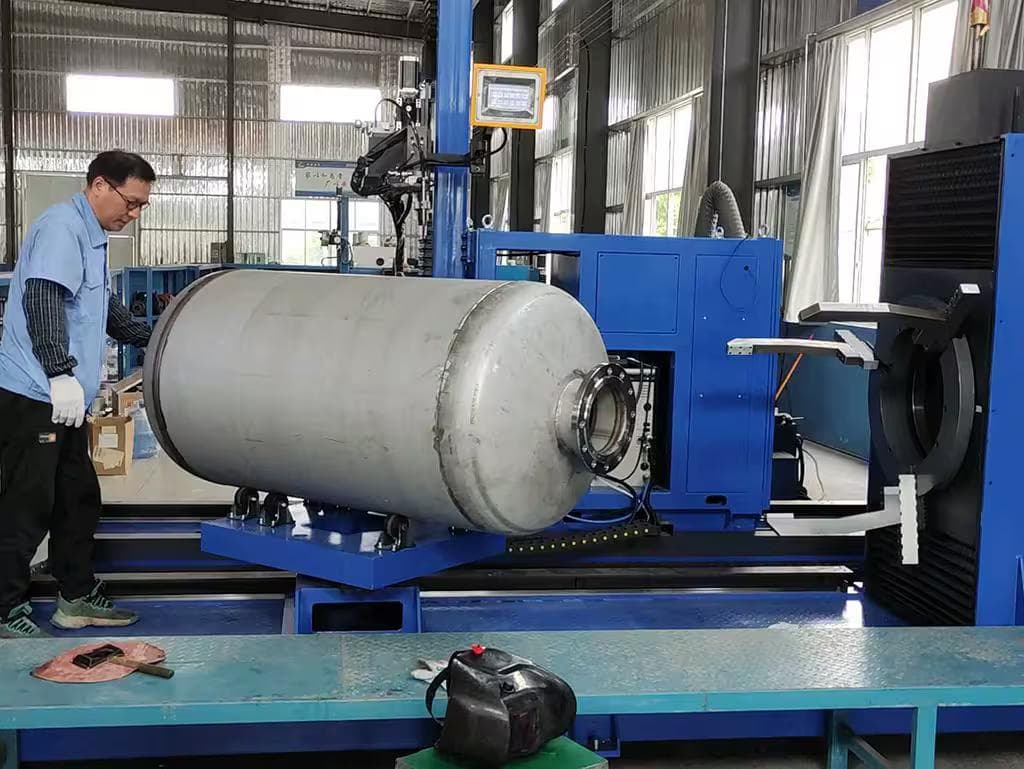

• 600kg Load Stability: Engineered to support a maximum workpiece load of 600 kg, maintaining absolute stability during high-speed rotation.
• Flexible Torch Articulation: Features a 0–90° torch positioning motion range, enabling seamless transitions between various joint angles.
• Integrated 3D Manipulator: Combines a sophisticated three-dimensional manipulator arm with a precision torch adjustment mechanism for efficient operations.

Intelligent Control & Automation

• Intuitive HMI Interface: Equipped with a large color touchscreen interface for simplified programming and real-time monitoring of all welding parameters.
• One-Touch Automated Workflow: Achieves full-cycle automation with a single-button start, ensuring industry-leading repeatability and consistency.
• Smart Recipe Management: Internal memory stores 40 sets of procedures, divided into 30 circumferential and 10 longitudinal programs for instant retrieval.

Advanced Process Control

• Standard AVC & OSC Systems: Comes standard with Arc Voltage Control (AVC) for consistent arc length and an oscillation system (OSC) for meticulous bead management.
• Precision CNC Wire Feeding: High-accuracy feeder includes automatic back-draw and pulse feeding functions for Φ1.0 mm diameter wire.
• Integrated Thermal Management: Features a built-in forced-circulation water cooling unit to guarantee reliable operation during continuous duty cycles.
