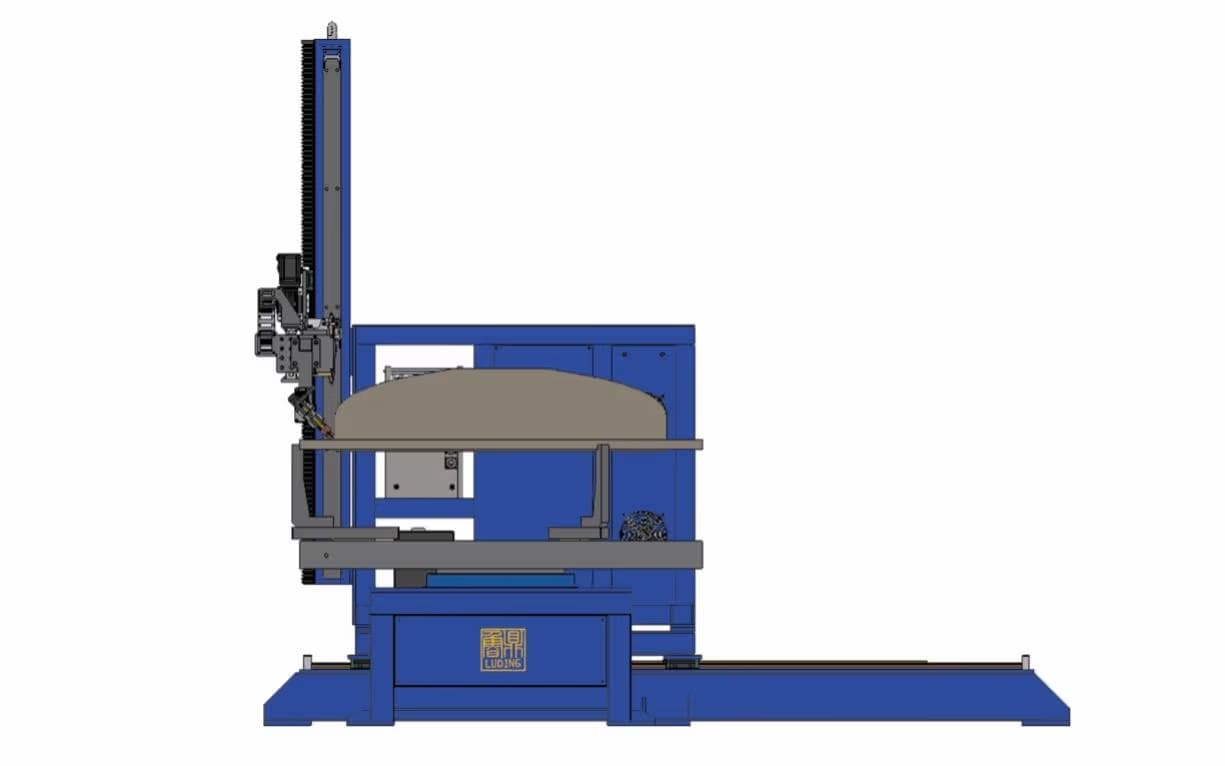

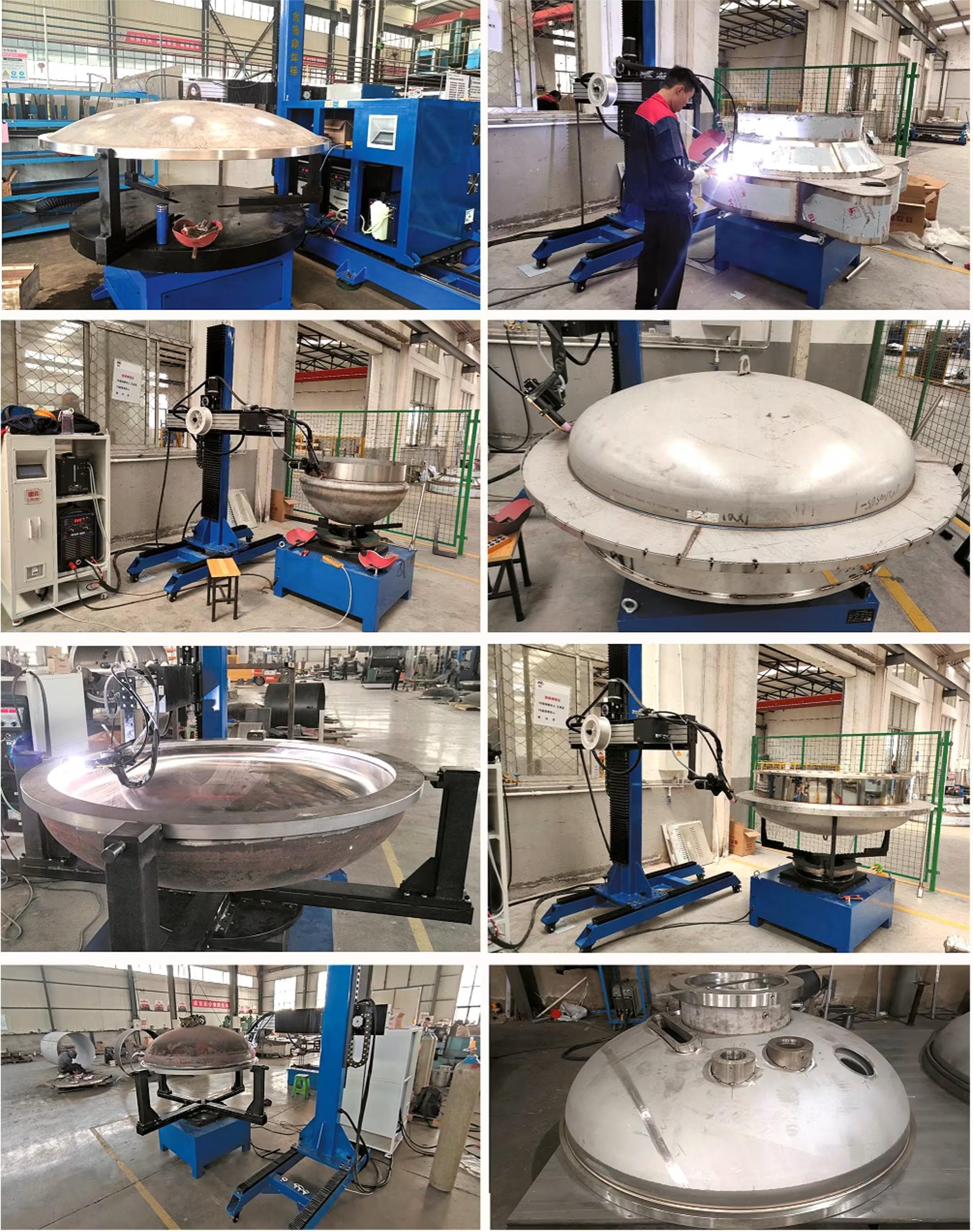

HF1700-RS Automatic Head-to-Flange Welding Machine
The HF1700-RS is an automatic Hot-Wire TIG welding machine for head-to-flange fillet and circumferential welds. Featuring arc tracking, CNC wire feeding, and touchscreen control, it delivers precise, stable welds for pressure vessel and tank fabrication up to Φ1700mm.
Speak with an engineer directly

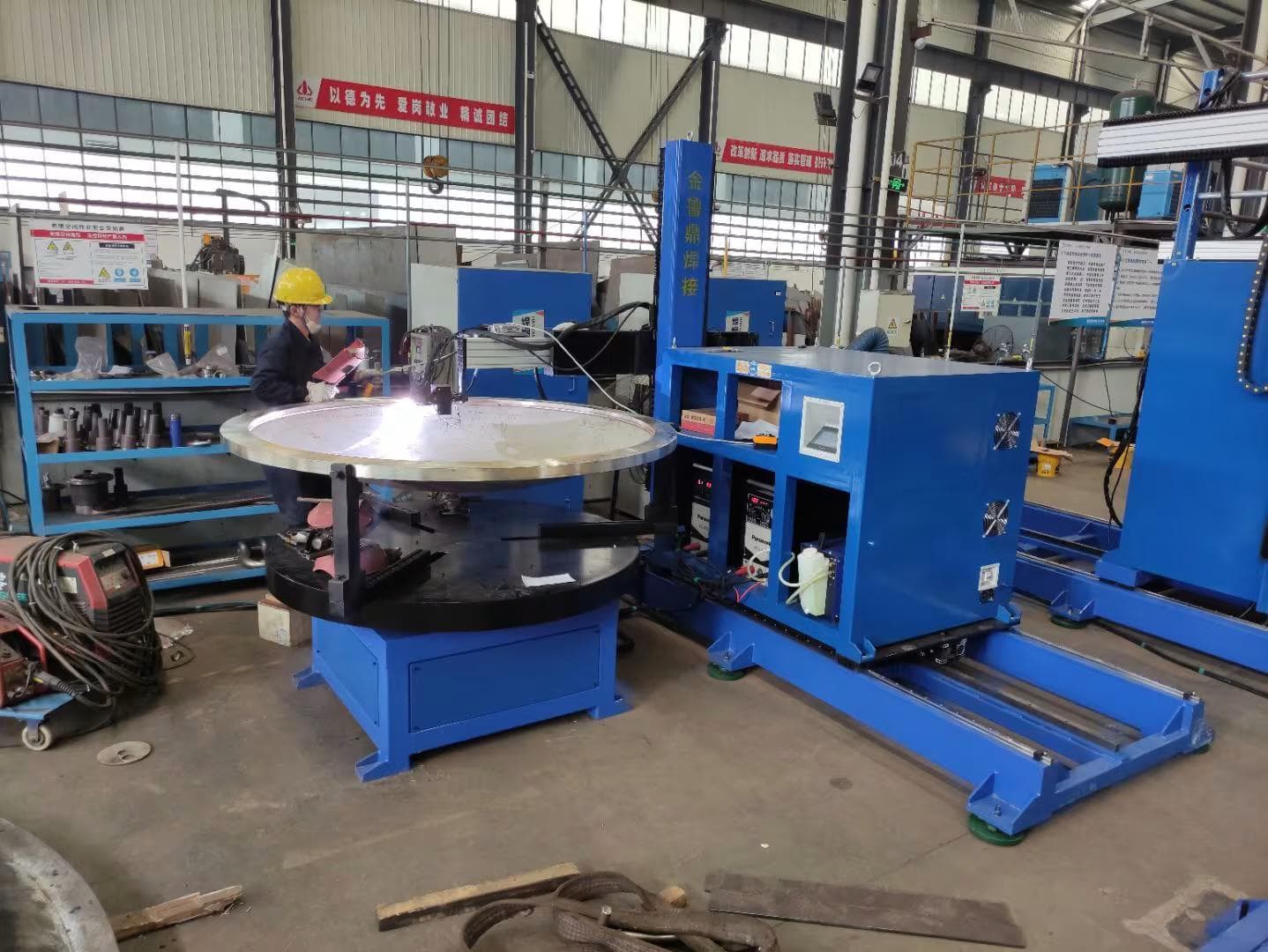

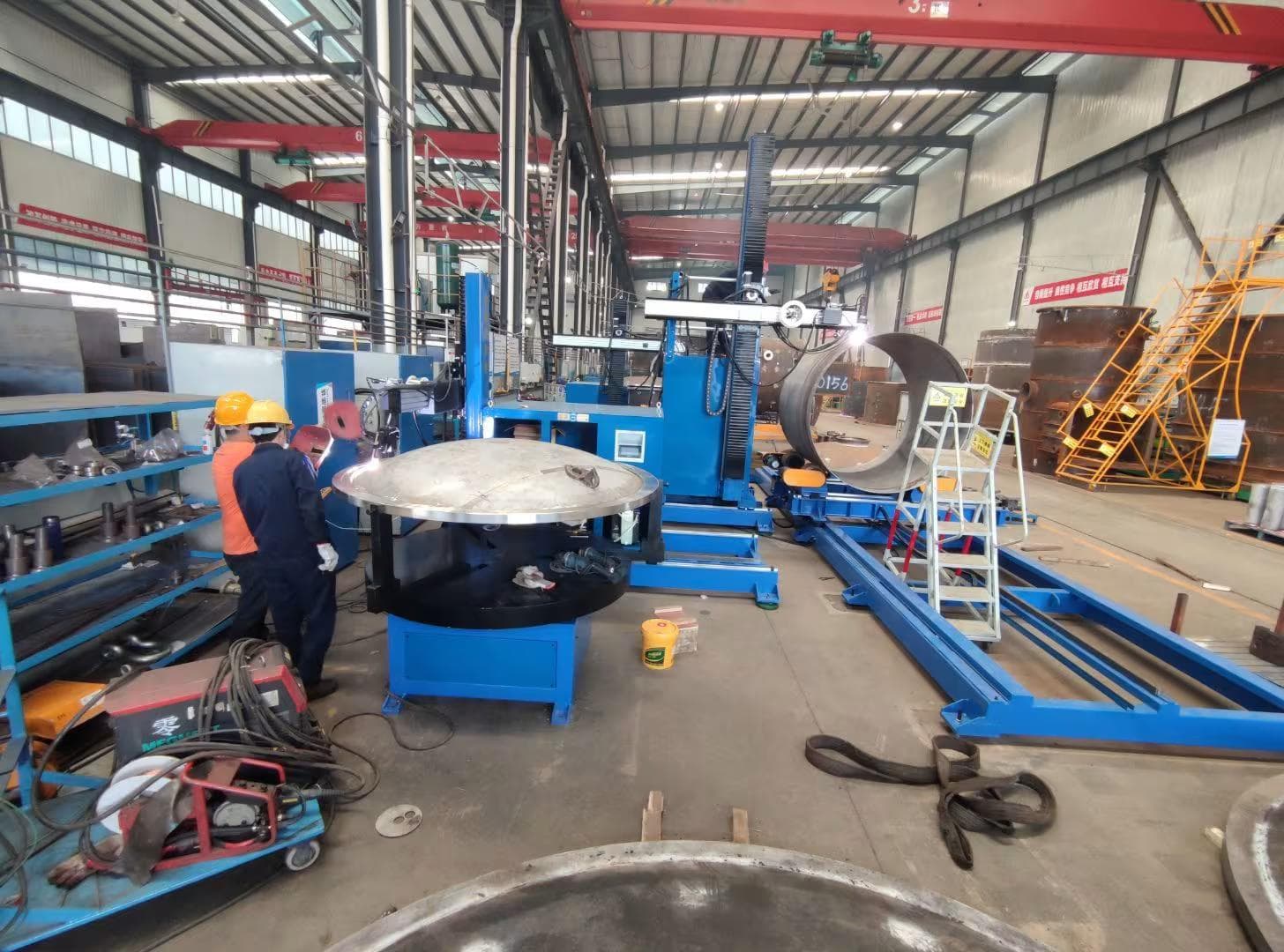

Product Details

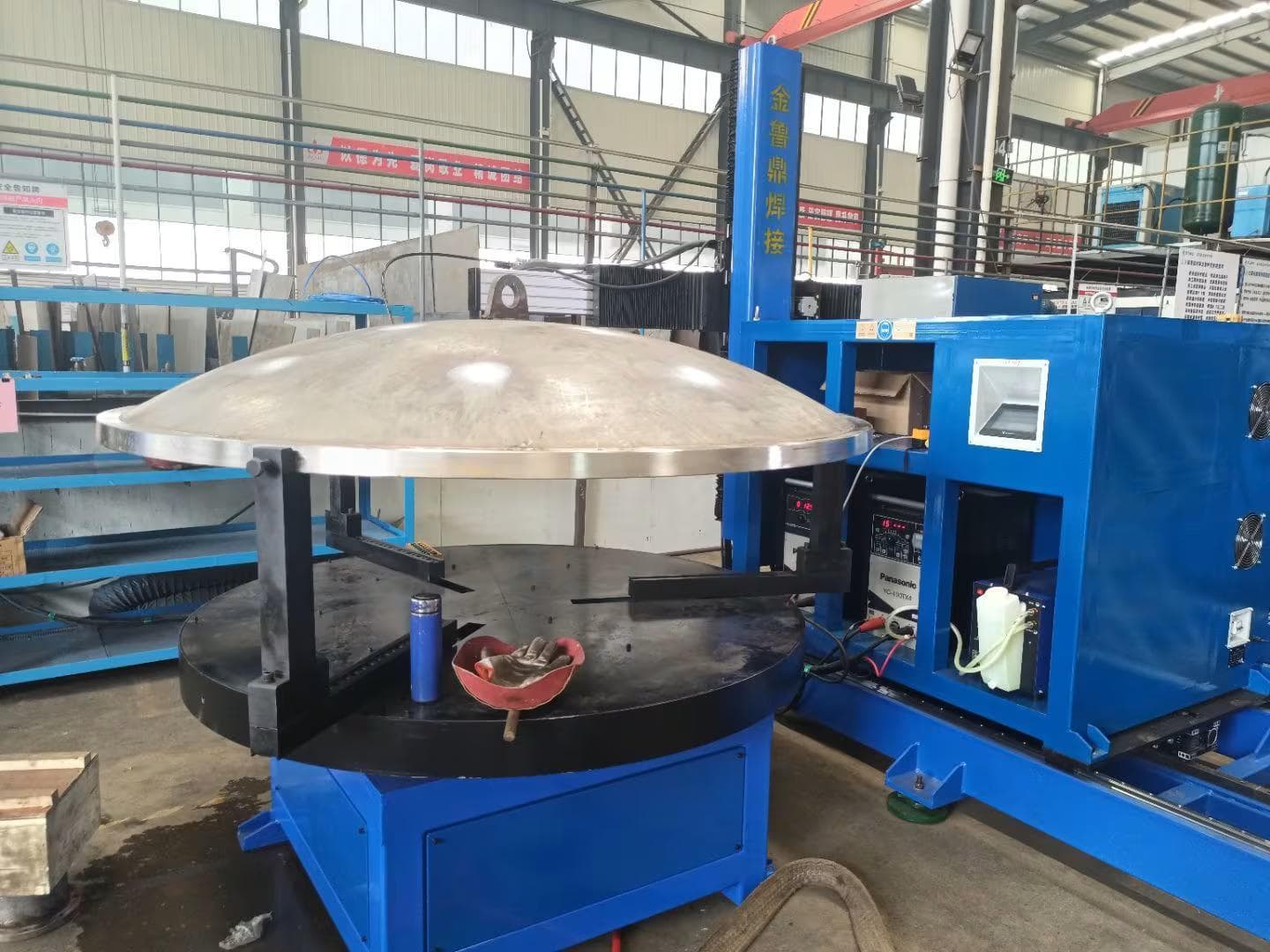

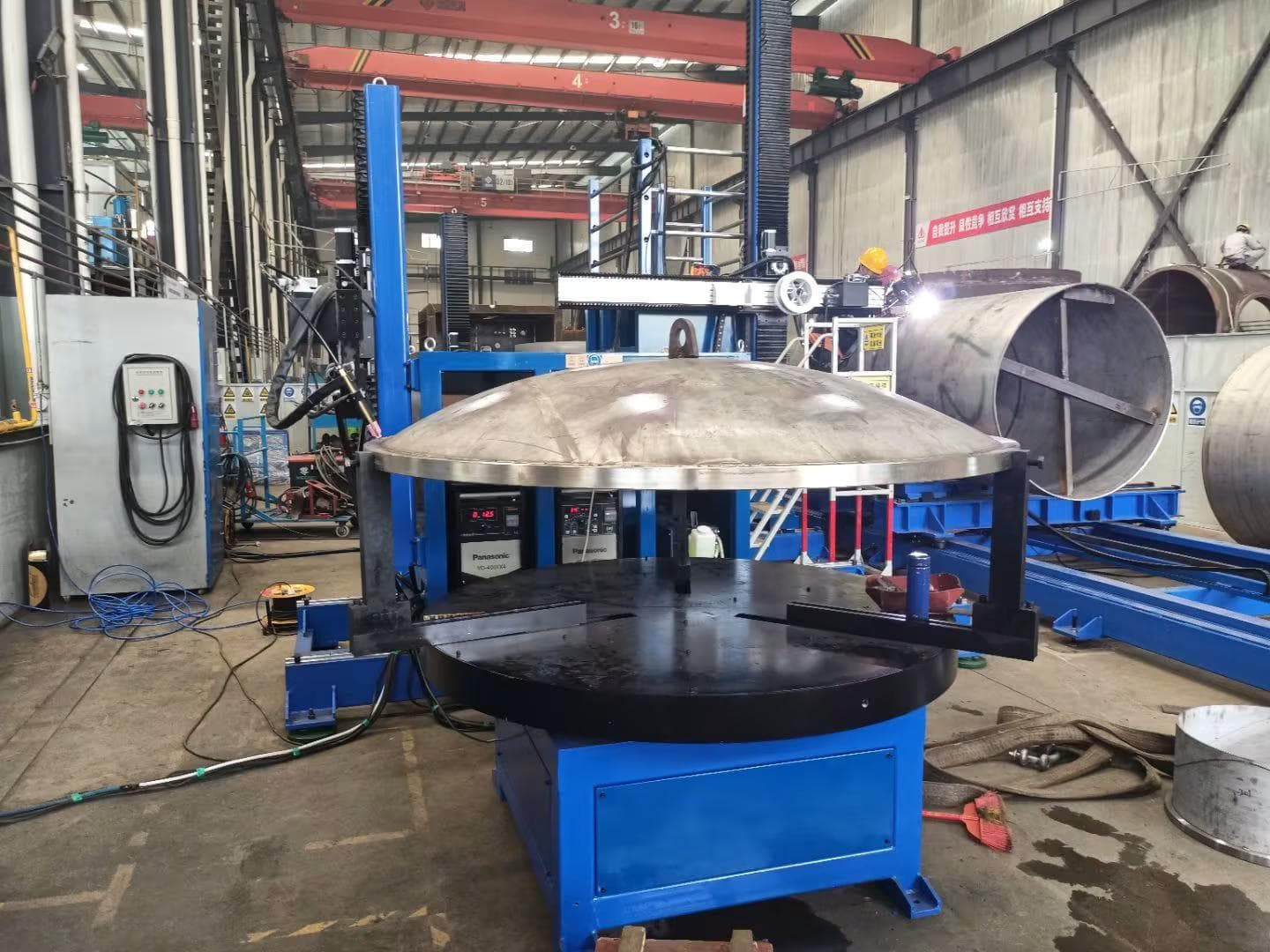

- Fixed Torch and Rotary Clamping Design: Utilizes a three-jaw self-centering electric chuck to clamp and rotate the workpiece, with a fixed welding torch configuration.
- Assembly Compatibility: Suitable for welding outer fillet seams and inner circumferential seams of head-to-flange joints.
- Welding Equipment Integration: Equipped with Hot-Wire Gas Tungsten Arc Welding (GTAW/TIG) equipment.
- Machine Construction: Features a split-type design with a compact, mature, and reliable structure.
- Multi-Axis Torch Adjustability: The combination of a welding manipulator arm and welding torch angle adjustment mechanism ensures multi-position and multi-angle torch conversion.
- Intuitive HMI Control: The control system utilizes a large touchscreen Human-Machine Interface (HMI), enabling convenient programming.
- WPS Process Memory: Welding procedure storage capacity is 30 sets; specific welding procedures (WPS) can be directly recalled by identification number according to workpiece specifications.
- Intelligent Arc Tracking & Weaving: Standard configuration includes a mechanical oscillation system (OSC) and an Arc Voltage Control system (AVC), guaranteeing supreme arc stability and highly aesthetic weld bead profiling.
- CNC Automated Wire Feeding: CNC automatic wire feeder equipped with automatic wire retraction and pulsed wire feeding functionalities, ensuring high wire feed precision.
- Forced Closed-Loop Cooling: Equipped with a forced circulation water-cooling system to ensure continuous, long-term, and reliable operation of the entire machine.
- Dual Operation Modes: One-touch operation autonomously completes the entire welding process; real-time manual intervention of welding parameters is also permitted according to requirements.
Technical Specifications
| Model | HF1700-RS |
| Applicable Joint Types | Head-to-flange inner circumferential seams and outer fillet seams |
| Clamping System | Three-jaw self-centering electric chuck; Clamping OD: Φ500 – Φ1700 mm |
| Weldment O.D. Range | Φ500 – Φ1700 mm |
| Welding Oscillator | Oscillation Width: 0 – 20 mm; Oscillation Speed: 0 – 20 mm/s; Groove Sidewall Dwell Time: 0 – 5 s |
| Arc Voltage Controller | Tracking Range: 0 – 40.0 mm; Tracking Speed: 0 – 6 mm/s; Arc length tracking precision: 0.2 mm |
| Auto Wire Feeder | Optimized for 1.0 mm wire diameter |
| TIG Torch | LD400 Water-Cooled TIG Torch Torch Pivot Range: 0–90° |
| Control Terminal | Color Touchscreen HMI (Human Machine Interface) |
| Procedure Memory Capacity | 30 Sets of Welding Procedures |
| Power Supply | Panasonic YC-400TX4HG5 Main Welding Power Supply (Optional extension: Panasonic YC-400TX4HGK Hot-Wire Power Supply) |
| Input Power/Voltage/Frequency | Welding Power: 30 kW / 380 V / 50 Hz Control System: 1.0 kW / 220 V / 50 Hz |
Model
HF1700-RS
Applicable Joint Types
Head-to-flange inner circumferential seams and outer fillet seams
Clamping System
Three-jaw self-centering electric chuck;
Clamping OD: Φ500 – Φ1700 mm
Weldment O.D. Range
Φ500 – Φ1700 mm
Welding Oscillator
Oscillation Width: 0 – 20 mm;
Oscillation Speed: 0 – 20 mm/s;
Groove Sidewall Dwell Time: 0 – 5 s
Arc Voltage Controller
Tracking Range: 0 – 40.0 mm;
Tracking Speed: 0 – 6 mm/s;
Arc length tracking precision: 0.2 mm
Auto Wire Feeder
Optimized for 1.0 mm wire diameter
TIG Torch
LD400 Water-Cooled TIG Torch
Torch Pivot Range: 0–90°
Control Terminal
Color Touchscreen HMI (Human Machine Interface)
Procedure Memory Capacity
30 Sets of Welding Procedures
Power Supply
Panasonic YC-400TX4HG5 Main Welding Power Supply
(Optional extension: Panasonic YC-400TX4HGK Hot-Wire Power Supply)
Input Power/Voltage/Frequency
Welding Power: 30 kW / 380 V / 50 Hz
Control System: 1.0 kW / 220 V / 50 Hz
