H5082-TD Automatic Welding Machine
The H5082-TD is a high-performance automated TIG welding system designed for heavy-duty pipe fabrication. Featuring a massive 515 mm spindle bore and a precision 3-axis manipulator, it provides an all-in-one solution for automated circumferential seam and fillet welding on pipes, flanges, and elbows. Enhance your production efficiency with one-touch operation and consistent, industrial-grade weld quality.
Speak with an engineer directly
Product Details
Wide Application Range

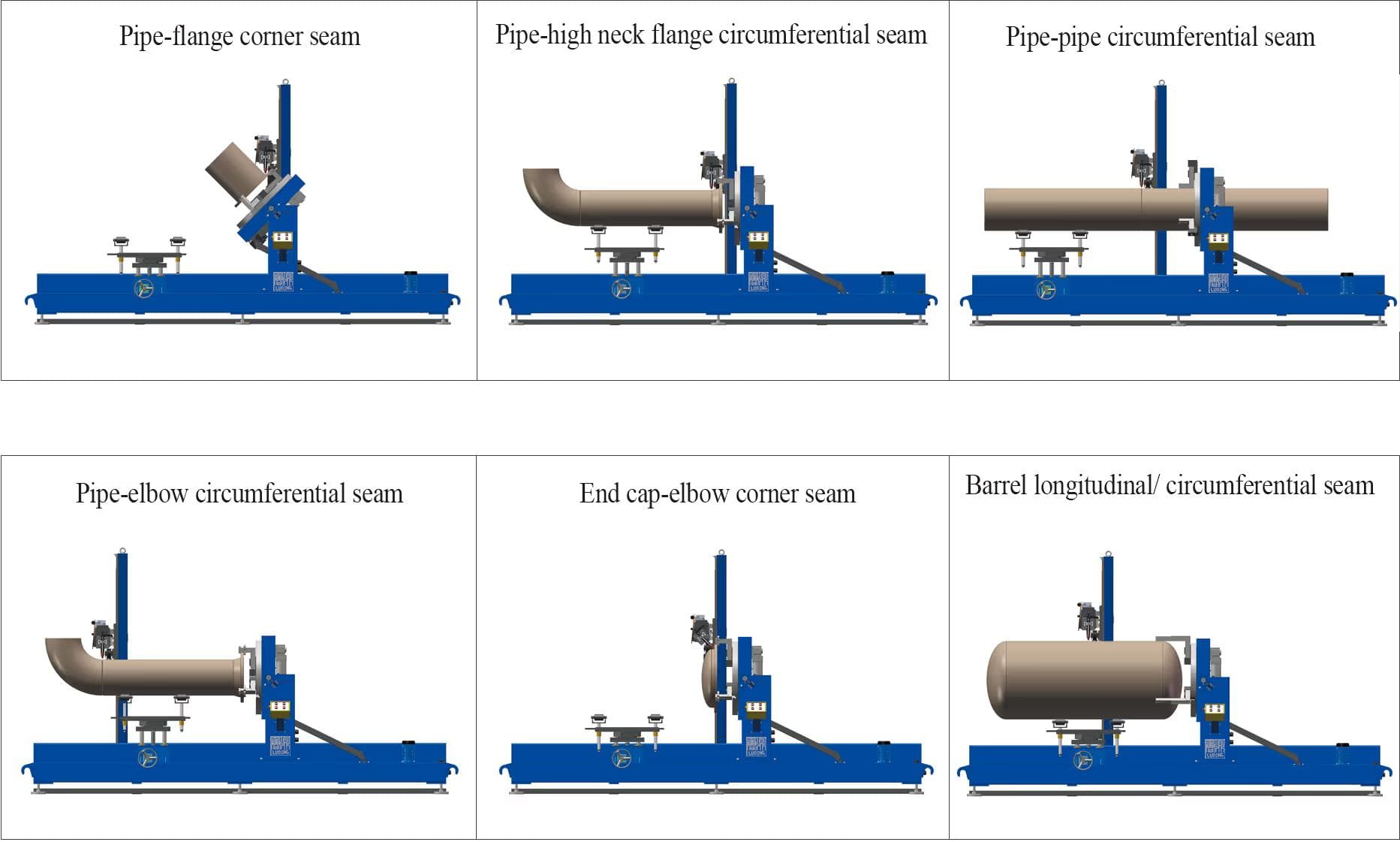

- Comprehensive Joint Compatibility: Precision-engineered for pipe-to-pipe, pipe-to-high-neck flange, and pipe-to-elbow circumferential seams.
- Versatile Fillet & Corner Welding: Optimized for high-standard pipe-to-flange and elbow-to-flange corner joints.
- Optional Functionality: Supports longitudinal seam welding functionality for enhanced workshop versatility.
- Broad Material Compatibility: Delivers superior TIG weld quality across carbon steel, stainless steel, and low-alloy steel.
Heavy-Duty Mechanical Positioning
- Large-Bore Spindle Design: Features a premium 3-jaw self-centering scroll chuck with a massive 515 mm (20") central hole, supporting a wide clamping range of 100–800 mm.
- High-Reach 3-Axis Manipulator: Equipped with a robust 3D manipulator arm providing a 2500 mm (X) x 900 mm (Y) travel distance for handling large-scale industrial workpieces.
- Motorized Tilting Positioner: The electrical-motor-driven positioner offers a 0–90° motion range, allowing for effortless transition between horizontal and vertical welding positions.
- Adjustable Torch Orientation: The TIG torch features a 0–90° angular motion range, providing superior accessibility for complex joint geometries.
Intelligent Control & Automation
- Intuitive Touchscreen HMI: Features a color touchscreen control terminal designed for user-friendly navigation and rapid programming.
- Smart Recipe Management: Internal memory stores 30 to 40 sets of customized welding procedures, enabling instant retrieval based on specific pipe diameters and schedules.
- One-Touch Automated Workflow: Achieve full-cycle automation with a single-button start, while allowing operators to perform real-time parameter intervention as needed.
Advanced Process Control
- Precision AVC & OSC Systems: Equipped with an Arc Voltage Controller (AVC) offering 0.2 mm tracking accuracy and a high-performance oscillation system (OSC) for meticulous bead control.
- Sophisticated Wire Feeding: The automatic feeder includes wire retraction and pulse feeding functions to ensure stable metal deposition and defect-free arc starts.
- High-Efficiency Thermal Management: Integrated forced-circulation water cooling system guarantees reliable, continuous operation for the LD27 torch during high-intensity duty cycles.
System Integration & Mobility
- All-in-One Compact Design: Seamlessly integrates the power source, 3D manipulator, and control cabinet into a reliable, heavy-duty structure with a total weight of 1400 kg.
- Optimized Power Distribution: Engineered for industrial environments with a 30 kW / 380 V main power input for the Panasonic power source.
Technical Specifications
| Model | H5082-TD |
| Applicable Joint Types | Pipe-to-pipe, pipe-to-high-neck flange (circumferential seam), and pipe-to-flange corner joints. Optional: Longitudinal seam welding. |
| Clamping System | 3-Jaw Self-centering(Scroll) Chuck Spindle Bore: 515mm (20.3'') Clamping Range (O.D.): 100 ~ 800 mm |
| Holding Bracket | Suitable for 100 ~ 800 mm One set included as standard |
| Welding Positioner | Motorized Tilt Range: 0–90° Rotation Radius: 800 mm. |
| Welding Oscillator | Width: 0~20 mm; Speed: 0~20 mm/s; Dwell Time: 0~5 s. |
| Arc Voltage Controller | Tracking Range: 0~40.0 mm Tracking Accuracy: ± 0.2 mm Tracking Speed: 0~6 mm/s |
| Auto Wire Feeder | Optimized for 1.0 mm wire diameter. |
| TIG Torch | LD27 Water-Cooled Torch; Torch Pivot Range: 0–90°. |
| Control Terminal | Color Touchscreen HMI (Human Machine Interface). |
| Procedure Memory Capacity | 30 sets (Standard); 40 sets (with Longitudinal Seam option). |
| Power Supply | Panasonic YC-400TX TIG Power Supply (Optional extension: Panasonic Hot-wire power supply)) |
| Input Power/Voltage/Frequency | Main Source: 30 kW / 380 V / 50 Hz Control Cabinet: 1.0 kW / 220 V / 50 Hz |
| Manipulator Stroke(X*Y*Z) | 2500*900*30 mm |
Model
H5082-TD
Applicable Joint Types
Pipe-to-pipe, pipe-to-high-neck flange (circumferential seam), and pipe-to-flange corner joints. Optional: Longitudinal seam welding.
Clamping System
3-Jaw Self-centering(Scroll) Chuck
Spindle Bore: 515mm (20.3'')
Clamping Range (O.D.): 100 ~ 800 mm
Holding Bracket
Suitable for 100 ~ 800 mm
One set included as standard
Welding Positioner
Motorized Tilt Range: 0–90°
Rotation Radius: 800 mm.
Welding Oscillator
Width: 0~20 mm;
Speed: 0~20 mm/s;
Dwell Time: 0~5 s.
Arc Voltage Controller
Tracking Range: 0~40.0 mm
Tracking Accuracy: ± 0.2 mm
Tracking Speed: 0~6 mm/s
Auto Wire Feeder
Optimized for 1.0 mm wire diameter.
TIG Torch
LD27 Water-Cooled Torch;
Torch Pivot Range: 0–90°.
Control Terminal
Color Touchscreen HMI (Human Machine Interface).
Procedure Memory Capacity
30 sets (Standard); 40 sets (with Longitudinal Seam option).
Power Supply
Panasonic YC-400TX TIG Power Supply
(Optional extension: Panasonic Hot-wire power supply))
Input Power/Voltage/Frequency
Main Source: 30 kW / 380 V / 50 Hz
Control Cabinet: 1.0 kW / 220 V / 50 Hz
Manipulator Stroke(X*Y*Z)
2500*900*30 mm

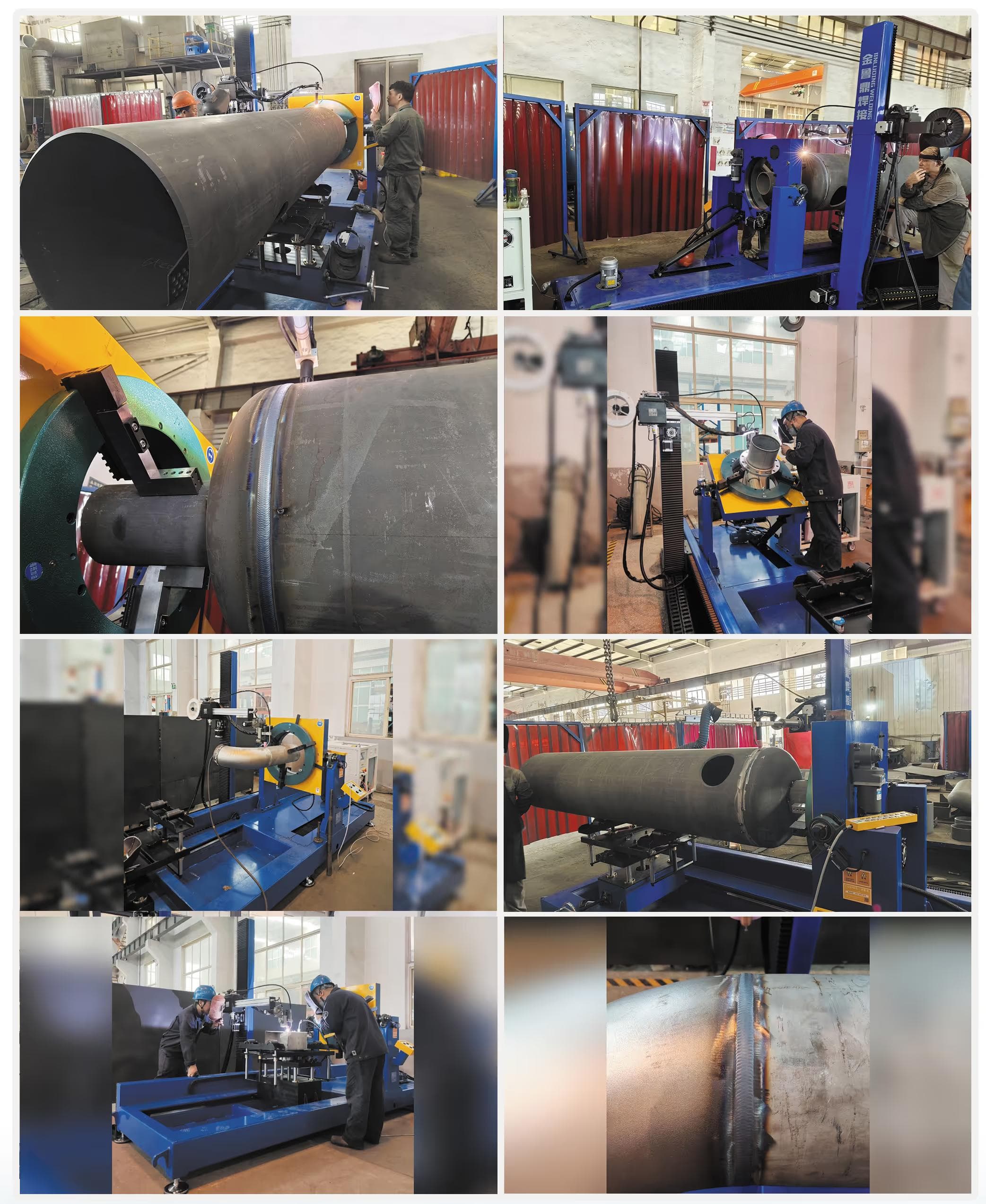

Product Gallery

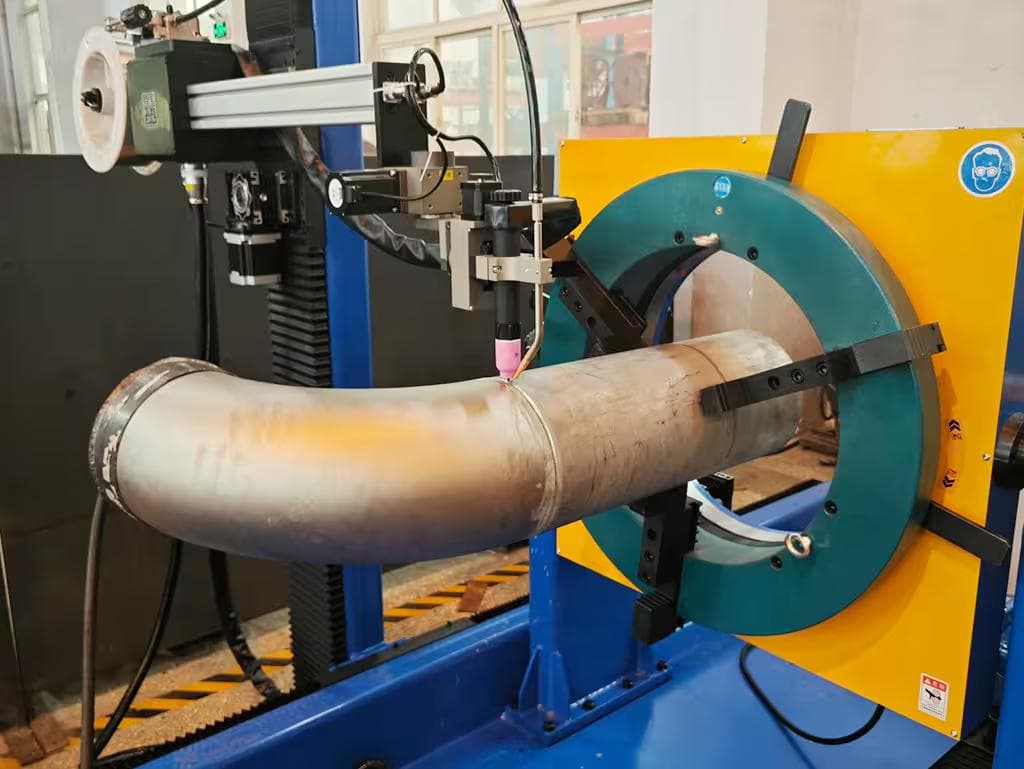

Working Footage #1

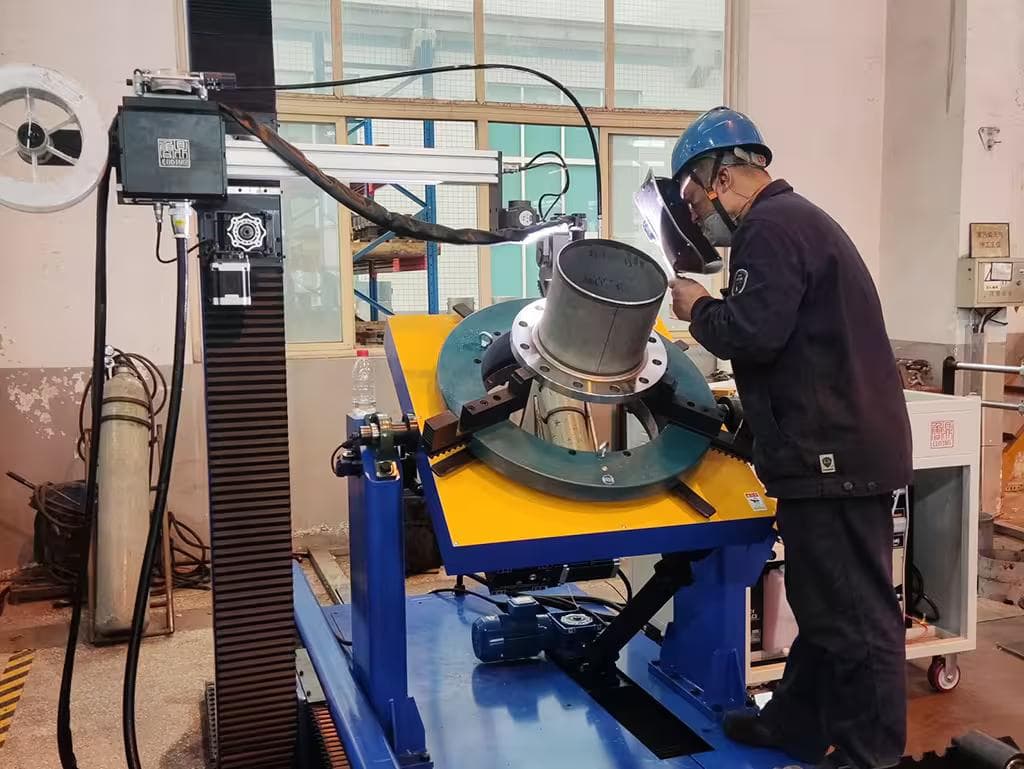

Working Footage #2

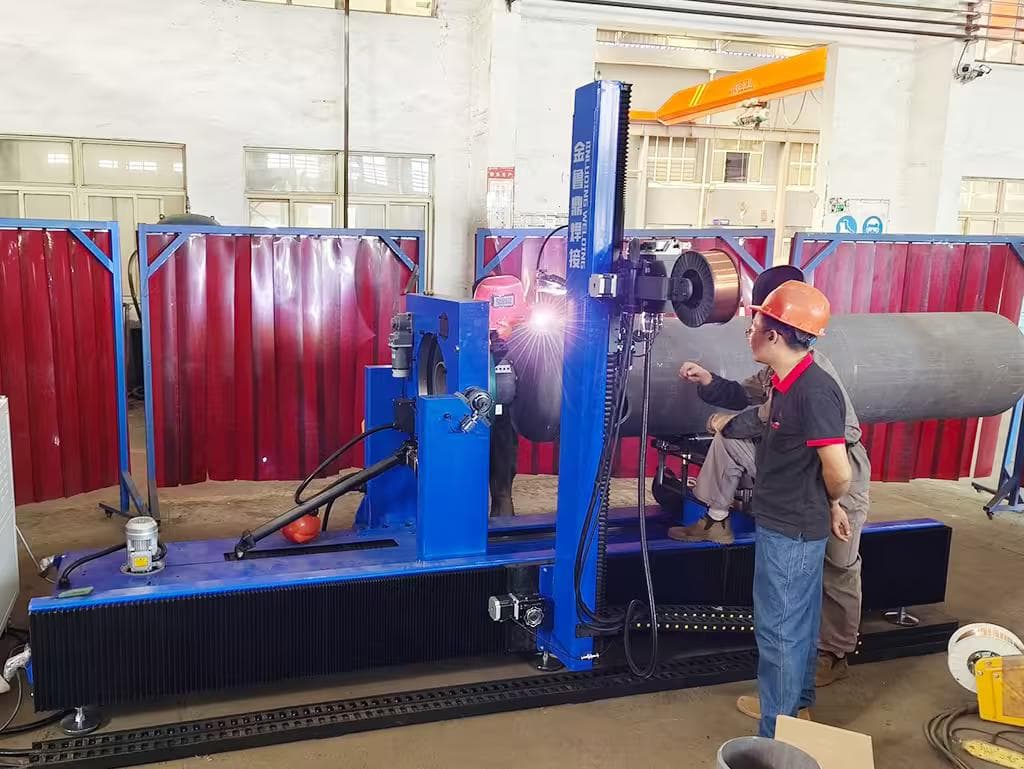

Working Footage #3

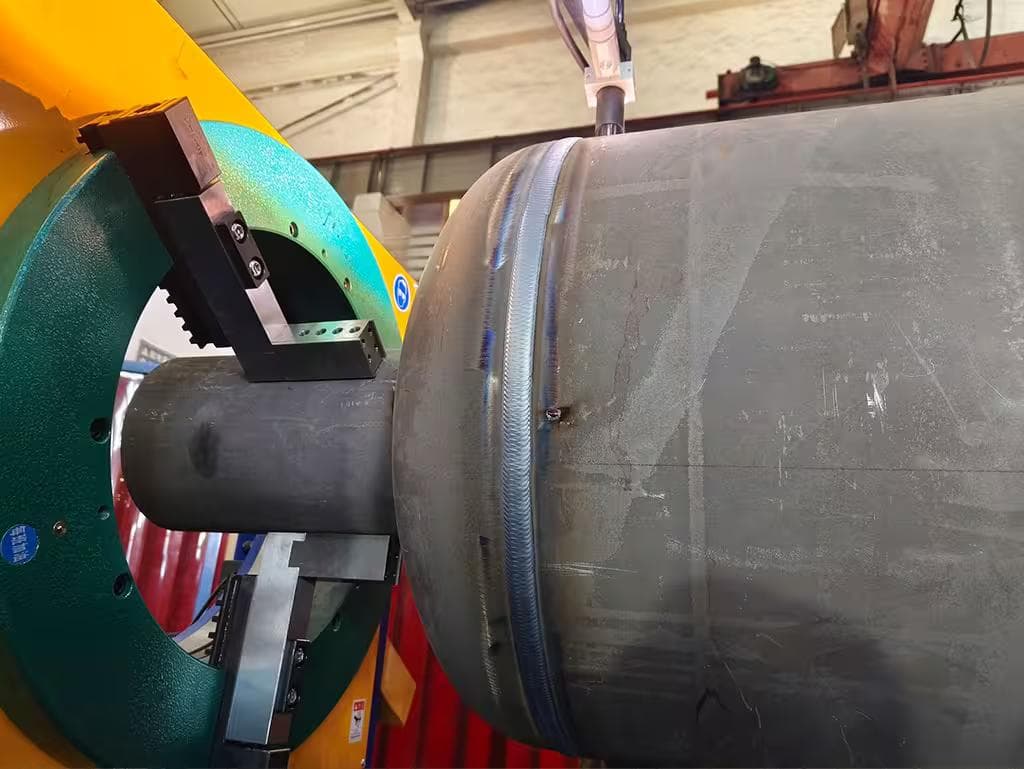

Working Footage #4
Working Footage #5

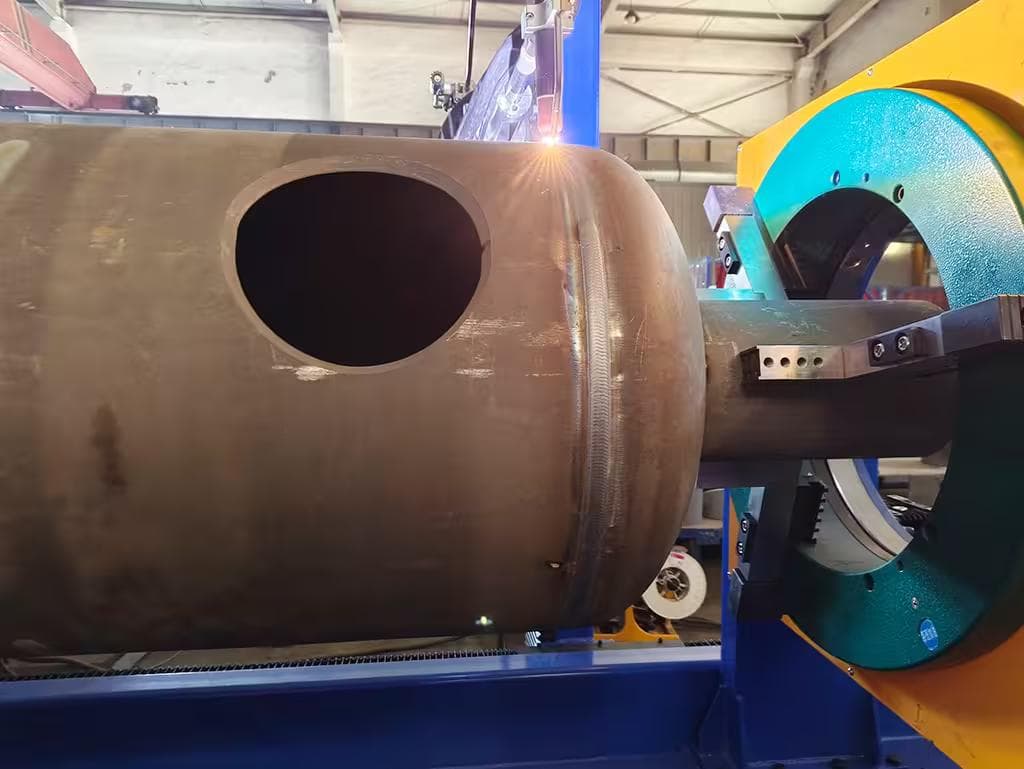

Working Footage #6
Video Demonstration
Video demonstrations show real-world applications of our welding equipment.
