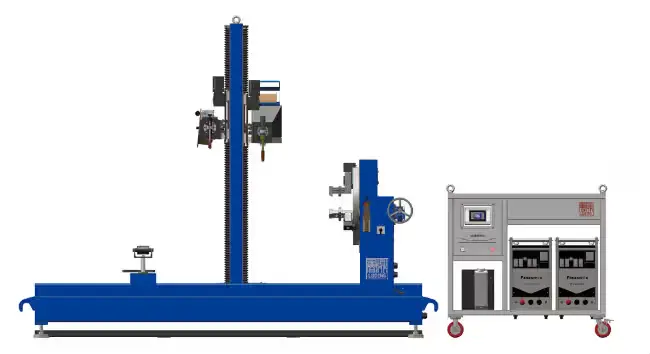

H3660-Y series T&MD Dual System Automatic Welding Machine
Automatic WelderDN50 – DN600
The H3660-Y series is a dual-process TIG/MIG welding machine built for automatic pipe, elbow, tee, and flange fabrication, pairing a 360 mm spindle-bore, three-jaw self-centering electric chuck with axially movable clamping for front- and rear-side welds across three sizes spanning 1000-3000 mm of chuck-forward travel. A manipulator arm, full-angle positioner, and adjustable torch head give multi-position, multi-angle reach, while standard AVC arc tracking and cross-oscillation hold the seam. A touchscreen HMI stores 30 WPS presets, and one-touch automation runs butt and fillet joints in carbon steel, low-alloy steel, and stainless steel.
Speak with an engineer directly
Product Details
Wide Joint & Material Application Range

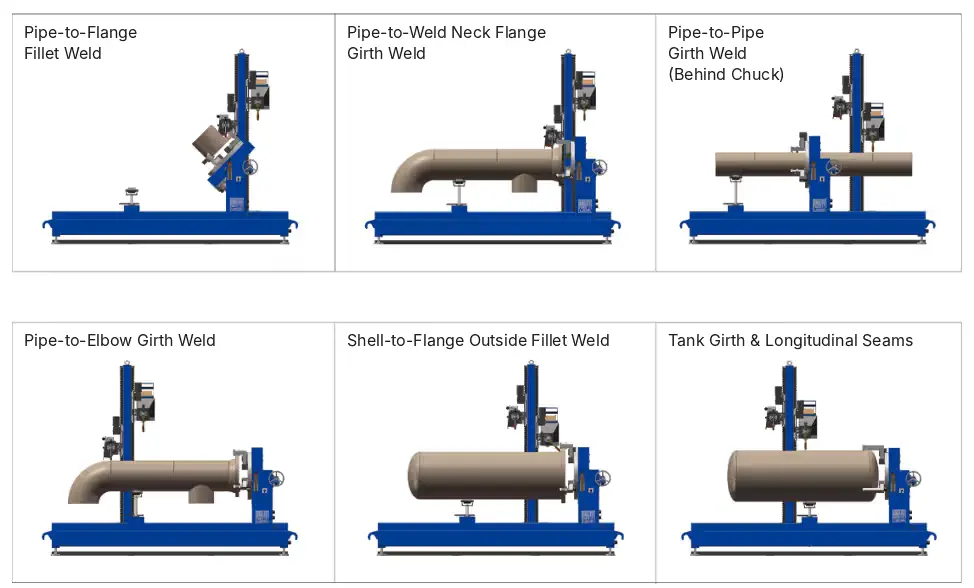

- Butt Welding Versatility: Handles pipe-to-pipe, pipe-to-elbow, pipe-to-tee, and pipe-to-welding-neck-flange butt joints in a single automated setup.
- Fillet Welding Capability: Also completes fillet welds on pipe flanges and elbow flanges, with an optional longitudinal-seam function for tank and vessel shells.
- Multi-Material Compatibility: Welds carbon steel, low-alloy steel, stainless steel, and other common fabrication materials without retooling.
- Dual TIG/MIG Process Flexibility: Built-in TIG and MIG/GMAW equipment let one machine deliver TIG's weld quality or MIG's welding speed, whichever the job calls for.
Heavy-Duty Mechanical Positioning
- Precision Self-Centering Chuck: A standard three-jaw self-centering electric chuck with a 360 mm through-hole and Φ50–Φ600 mm clamping range keeps the workpiece accurately centered.
- Multi-Axis Torch Adjustability: A welding manipulator arm, full-angle positioner, and torch-angle adjustment mechanism combine for multi-position, multi-angle torch conversion on complex joints.
- Dual-End Chuck Welding: The chuck's axially movable, reliably locking design lets both its front and rear sides be welded, extending reach and adaptability.
Intelligent Control & Automation
- Intuitive Touchscreen HMI: A large color touchscreen HMI keeps programming straightforward for operators of any experience level.
- WPS Recipe Memory: Stores 30 welding-procedure sets (40 with the longitudinal-seam option), each recalled by ID to match the workpiece at hand.
- One-Touch & Manual Modes: One-touch operation runs the entire weld cycle automatically, while real-time manual intervention stays available whenever an operator needs to fine-tune parameters.
Advanced Process Control & Reliability
- Arc Tracking & Weaving: Standard AVC (arc voltage control) and a torch cross-oscillation (OSC) system keep the arc locked onto the seam through variation in the joint.
- CNC-Precision Wire Feeding: A CNC automatic wire feeder adds wire retraction and pulsed feed for consistently accurate deposition at 1.0 mm or 1.2 mm wire diameters.
- Forced Closed-Loop Cooling: A forced circulation water-cooling system supports continuous, long-duty-cycle operation without thermal derating.
Technical Specifications
| Model | H3661-Y-T&MD / H3662-Y-T&MD / H3663-Y-T&MD |
| Applicable Joint Types | Pipe-to-pipe, pipe-to-elbow, pipe-to-tee, and pipe-to-welding-neck-flange butt welds; pipe-flange and elbow-flange fillet welds (optional longitudinal seam welding for tanks/vessels) |
| Clamping System | Three-jaw self-centering electric chuck (standard) Center through-hole: 360 mm Clamping O.D. range: Φ50–Φ600 mm Chuck forward travel: 1000 mm / 2000 mm / 3000 mm (H3661Y-T&MD / H3662Y-T&MD / H3663Y-T&MD) |
| Weldment O.D. Range | Φ50 – Φ600 |
| Support Stand | Suitable for Φ50–Φ600 mm workpieces One set standard (additional sets optional) |
| Welding Positioner | Tilt range: 0–90° (manual positioning) Rotation radius: 500 mm Axially movable |
| Welding Oscillator | Oscillation width: 0–20 mm Oscillation speed: 0–20 mm/s Groove sidewall dwell time: 0–5 s |
| Arc Voltage Controller | Tracking Range: 0~40.0 mm Tracking Accuracy: ± 0.2 mm Tracking Speed: 0~6 mm/s |
| Auto Wire Feeder | Suitable for wire diameters 1.0 mm and 1.2 mm |
| TIG Torch | LD27 water-cooled TIG welding torch Torch pivot range: 0–90° |
| Control Terminal | Color Touchscreen HMI (Human Machine Interface) |
| Procedure Memory Capacity | 30 sets (standard); 40 sets (with longitudinal seam welding option) |
| Power Supply | Panasonic YC-400TX TIG power supply (includes wire feeder) Panasonic YD-500FR2 MIG power supply (includes wire feeder) |
| Dimensions | 2000×2000×2500 mm / 3000×2000×2500 mm / 4000×2000×2500 mm (L×W×H; H3661Y-T&MD / H3662Y-T&MD / H3663Y-T&MD) |
| Input Power/Voltage/Frequency | Panasonic power supply: 30 kW / 380 V / 50 Hz Control cabinet: 1.0 kW / 220 V / 50 Hz |
| Manipulator Arm Stroke (X×Y×Z): | 1500×900×30 mm (H3661Y-T&MD) 2500×900×30 mm (H3662Y-T&MD) 3500×900×30 mm (H3663Y-T&MD) |
| MIG Welding Torch: | AUT-501D water-cooled MIG welding torch Torch pivot range: 0–90° (shared with the TIG torch) |
| Outline Reference Dimensions: | Center height: 1020 mm Swing/rotation radius (per outline drawing): 700 mm Control cabinet offset: 1500 mm |
Model
H3661-Y-T&MD / H3662-Y-T&MD / H3663-Y-T&MD
Applicable Joint Types
Pipe-to-pipe, pipe-to-elbow, pipe-to-tee, and pipe-to-welding-neck-flange butt welds; pipe-flange and elbow-flange fillet welds (optional longitudinal seam welding for tanks/vessels)
Clamping System
Three-jaw self-centering electric chuck (standard)
Center through-hole: 360 mm
Clamping O.D. range: Φ50–Φ600 mm
Chuck forward travel: 1000 mm / 2000 mm / 3000 mm (H3661Y-T&MD / H3662Y-T&MD / H3663Y-T&MD)
Weldment O.D. Range
Φ50 – Φ600
Support Stand
Suitable for Φ50–Φ600 mm workpieces
One set standard (additional sets optional)
Welding Positioner
Tilt range: 0–90° (manual positioning)
Rotation radius: 500 mm
Axially movable
Welding Oscillator
Oscillation width: 0–20 mm
Oscillation speed: 0–20 mm/s
Groove sidewall dwell time: 0–5 s
Arc Voltage Controller
Tracking Range: 0~40.0 mm
Tracking Accuracy: ± 0.2 mm
Tracking Speed: 0~6 mm/s
Auto Wire Feeder
Suitable for wire diameters 1.0 mm and 1.2 mm
TIG Torch
LD27 water-cooled TIG welding torch
Torch pivot range: 0–90°
Control Terminal
Color Touchscreen HMI (Human Machine Interface)
Procedure Memory Capacity
30 sets (standard); 40 sets (with longitudinal seam welding option)
Power Supply
Panasonic YC-400TX TIG power supply (includes wire feeder)
Panasonic YD-500FR2 MIG power supply (includes wire feeder)
Dimensions
2000×2000×2500 mm / 3000×2000×2500 mm / 4000×2000×2500 mm (L×W×H; H3661Y-T&MD / H3662Y-T&MD / H3663Y-T&MD)
Input Power/Voltage/Frequency
Panasonic power supply: 30 kW / 380 V / 50 Hz
Control cabinet: 1.0 kW / 220 V / 50 Hz
Manipulator Arm Stroke (X×Y×Z):
1500×900×30 mm (H3661Y-T&MD)
2500×900×30 mm (H3662Y-T&MD)
3500×900×30 mm (H3663Y-T&MD)
MIG Welding Torch:
AUT-501D water-cooled MIG welding torch
Torch pivot range: 0–90° (shared with the TIG torch)
Outline Reference Dimensions:
Center height: 1020 mm
Swing/rotation radius (per outline drawing): 700 mm
Control cabinet offset: 1500 mm
