Jin Luding Welding successfully delivered an automated all-position pipeline welding solution to Singapore's Techniques Air-Conditioning & Engineering. Utilizing a unique trackless industrial design and a compact wire spool system, the equipment overcomes extreme high-altitude space constraints within a strict 200mm operating clearance.
The Challenge: High-Altitude Pipeline Installation in Restricted Spaces
Jin Luding Welding has officially finalized equipment delivery and technical deployment for Techniques Air-Conditioning & Engineering Pte Ltd, a premier mechanical engineering contractor based in Singapore.
As an established contractor in the Singapore construction market, Techniques specializes in high-standard Air Conditioning & Mechanical Ventilation (ACMV/HVAC) systems, specialized cleanroom environmental engineering, and complex large-bore pipeline networks for commercial and industrial facilities. Unlike controlled factory production workshops, this infrastructure project required welding directly on active, high-altitude field construction sites.
The site environment presented severe clearance limitations. The pipeline installations were crowded alongside pre-existing structural columns and adjacent utility grids, leaving an extremely narrow construction radius of only 200mm to 220mm for the automated welding equipment to perform a 360-degree circumferential joint. Furthermore, the machinery needed to operate with absolute structural rigidity at great heights while remaining lightweight enough for rapid manual handling, setup, and teardown by field operators.
The Core Solution: APF160 Series and CR-5 Wire Winding Synergy
To solve these severe clearance limitations without sacrificing arc stability, Jin Luding's engineering team provided a modular, space-saving pipeline automation package. The delivery included the APF160-RST All-Position Pipe Welding Machine (TIG/Hot-Wire), the APF160-MIG All-Position Welding Machine, and the CR-5 Precision Wire Winding Machine <Contact us inquiry for details!>.

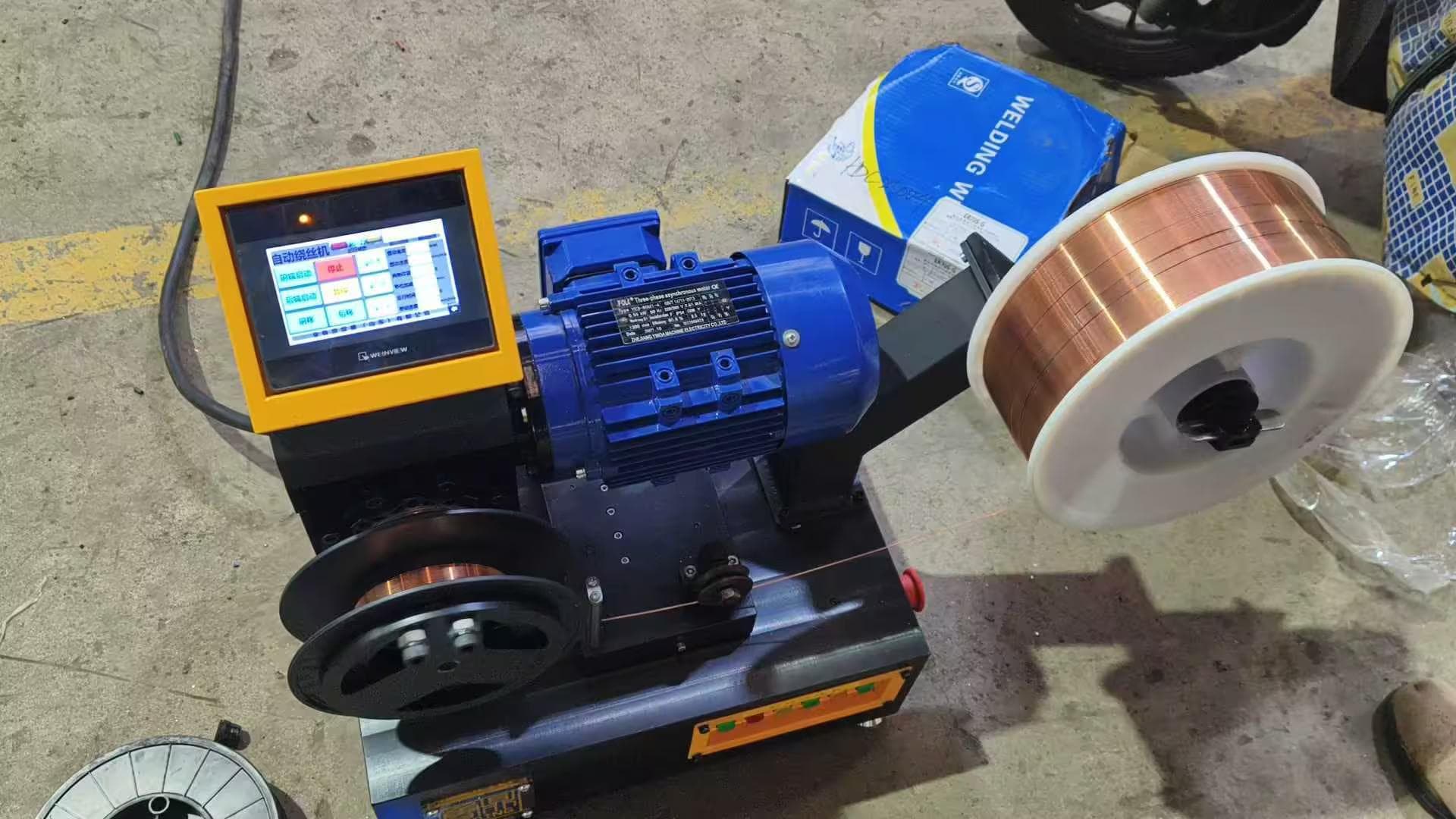

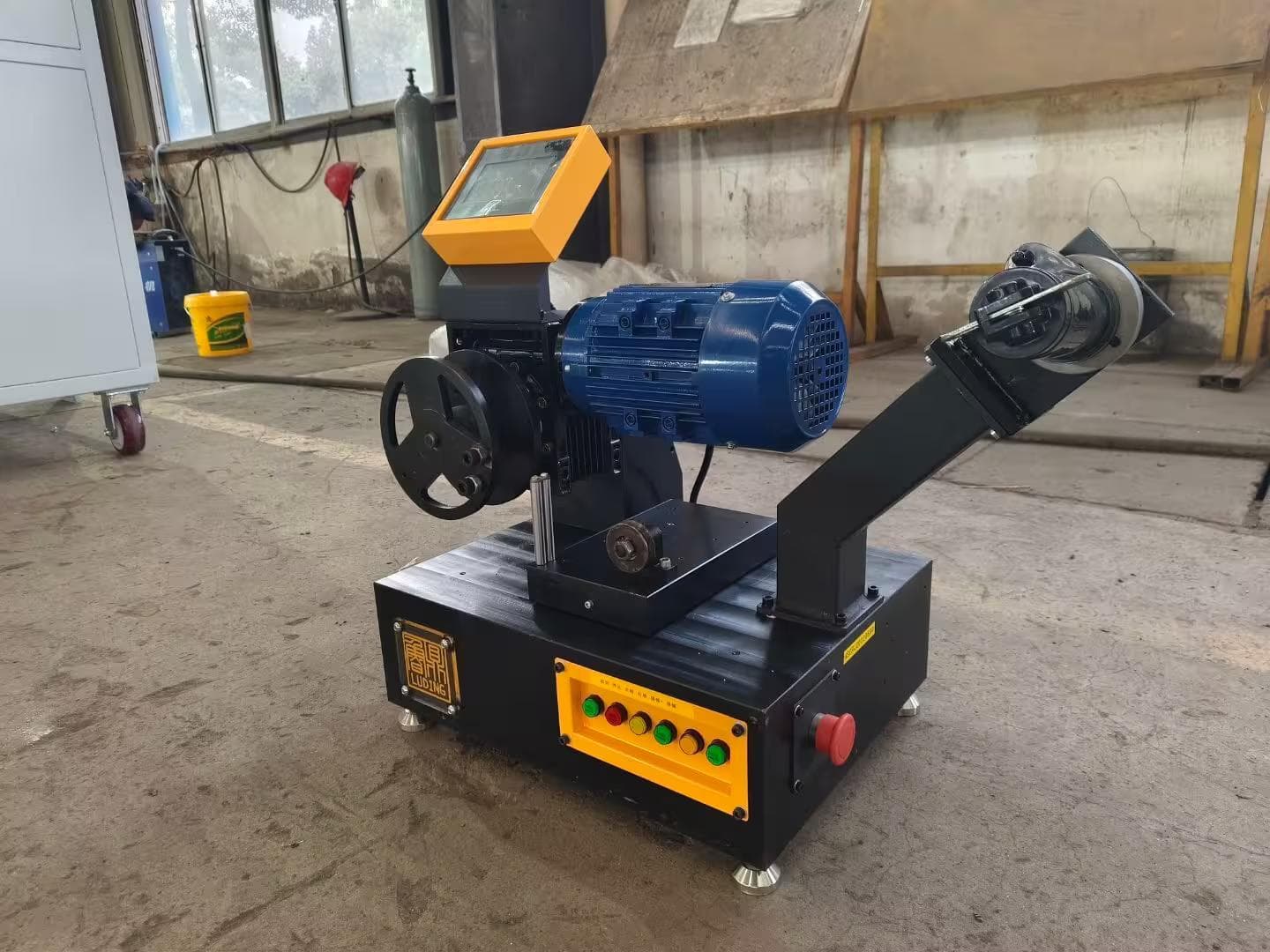

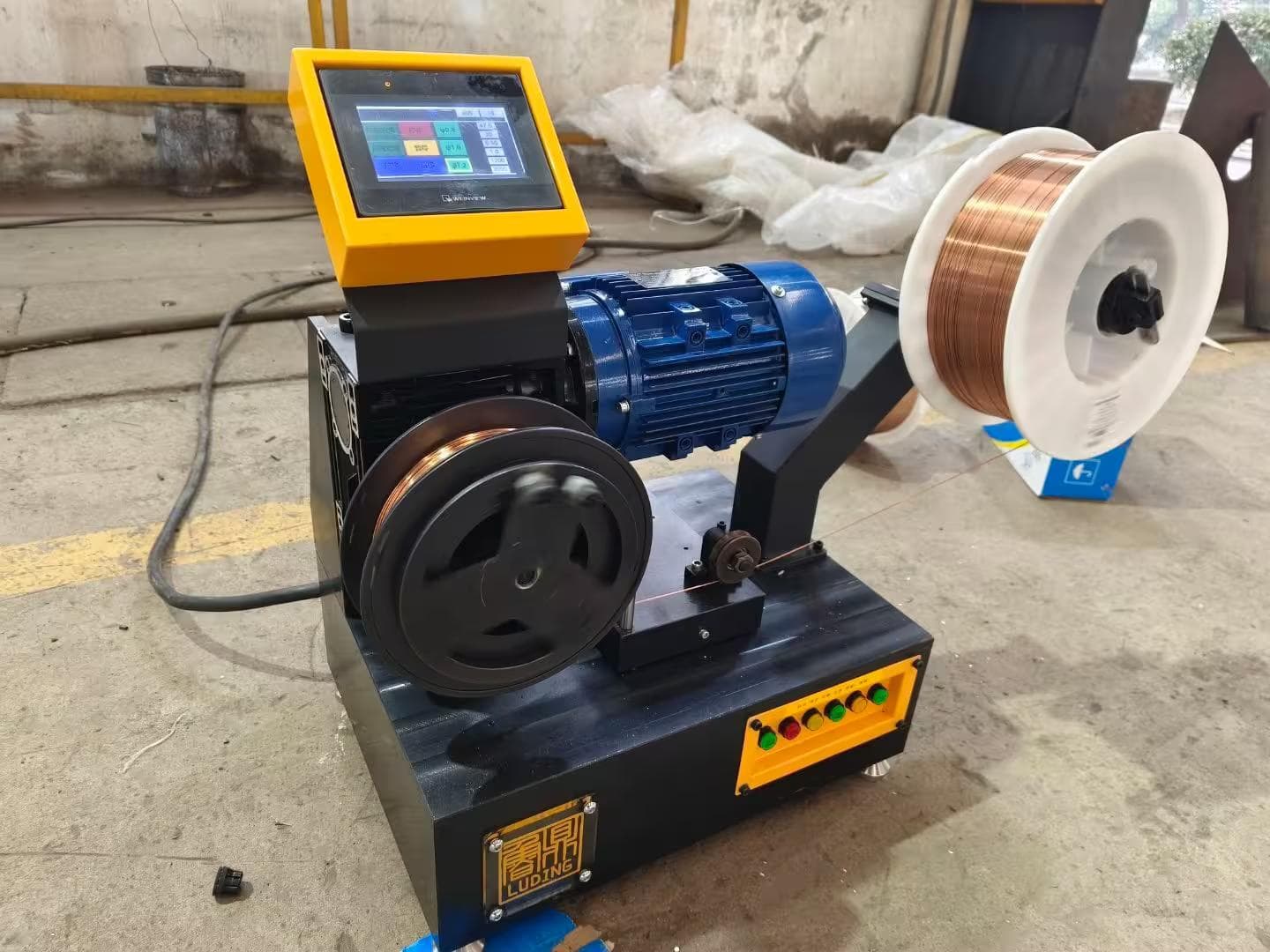

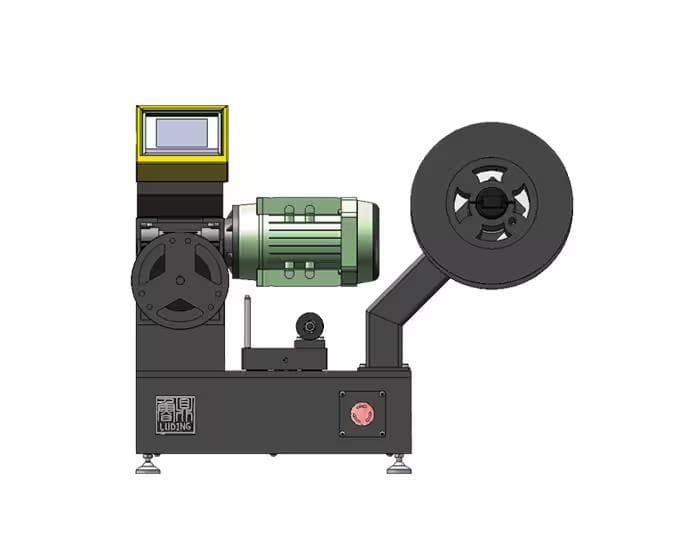

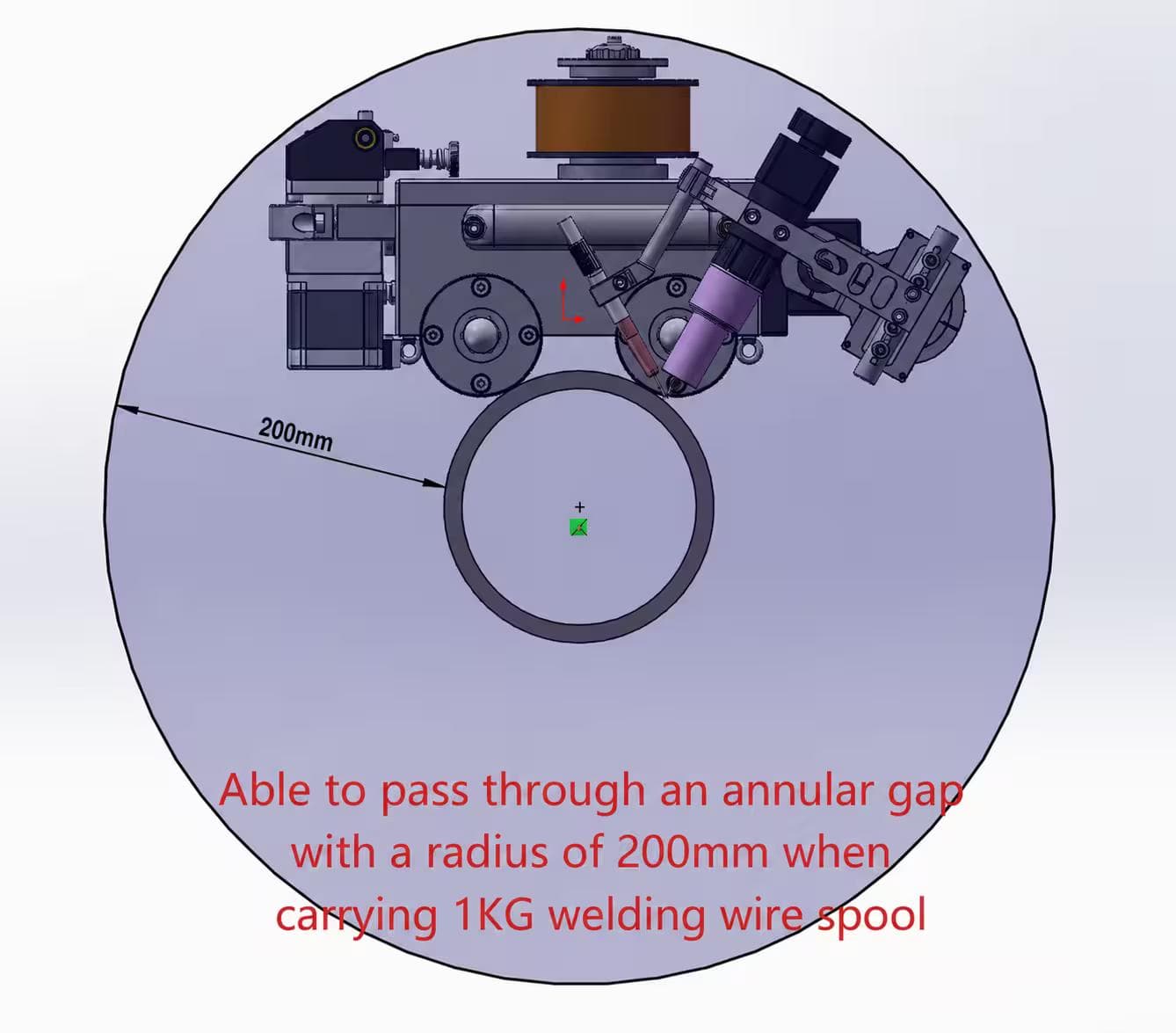

The primary bottleneck of operating standard orbital welding crawlers in a 200mm tight radius is the massive physical footprint of standard industrial 15kg or 20kg welding wire spools. To circumvent this physical limitation, the CR-5 Wire Winding Machine was integrated directly into the client’s deployment strategy. The CR-5 uniformly and tightly rewinds standard bulk carbon steel or stainless steel wires (diameters ranging from φ0.8 mm to φ1.0 mm) onto compact 1kg or 5kg plastic welding wire spools. By substituting the heavy bulk spools with these scaled-down packages, the overall physical profile of the APF160 series crawlers was minimized, enabling them to operate flawlessly within the client's strict 200mm–220mm spatial clearance boundary.
Engineering Breakthrough: Unique Trackless Industrial Design and Low-Profile Passability
Beyond the minimized spool profile, the APF160 series introduces proprietary structural adaptations engineered specifically for spatial passability in complex field environments:
- Unique Trackless Industrial Design: To ensure maximum flexibility in restricted zones, the system completely bypasses the need for bulky, heavy external rigid guide tracks that require extensive mounting space. Instead, the crawler utilizes an intelligent grip locomotion mechanism to move seamlessly and directly along the circumference of the pipe workpiece, cutting down field setup times dramatically.
- Downslung Umbilical Cable Profile: To squeeze every millimeter out of the workspace, the welding torch assembly and machine control cables are routed utilizing an ultra-low configuration. All connection lines are maintained strictly below the topmost line of the wire spool. This streamlined outer profile guarantees that the machine can pass through overhead structural traps without catching, rubbing, or snagging on surrounding facilities.
- Elevated Stability and Lightweight Build: Manufactured from high-strength aluminum alloy, the APF160 body minimizes physical load for workers mounting the system on overhead lines while providing the vibration-free structural dampening necessary for flawless root and cap passes.
Comprehensive Global Logistics and Future Engineering Cooperation
Exporting high-precision automation systems internationally requires strict adherence to international freight compliance. Because the APF160 series incorporates high-performance, integrated electronic drive systems, our international logistics department managed specialized protective structural packaging and handled all export customs clearance processing to guarantee zero arrival delays at the Singapore port.
Moving past the initial delivery, Jin Luding Welding and Techniques Air-Conditioning & Engineering intent to sign a formal future On-Site Engineer Technical Support Agreement. As the client's large-scale piping project progresses into its next sophisticated construction phases, Jin Luding's senior welding technicians will be deployed directly to the Singapore field site. Our team will provide customized weld parameter calibration, system optimization, and advanced automated operation training to guarantee seamless execution.
Conclusion: Engineering Custom Automation for Global Markets
This successful delivery to Singapore’s engineering sector emphasizes Jin Luding's core brand strength: delivering customized, high-precision automatic welding solutions that solve real-world field installation bottlenecks. Backed by nearly 20 years of continuous R&D and patented manufacturing technologies, we supply the reliable, industrial-grade equipment needed to future-proof complex engineering projects worldwide.
Content published with the express permission of the client.
